SELECT A DIAGRAM

01 - Body (cwe4800acs)


02 - Control Panel (cwe4800acs/cwe5800acs)


03 - Door-lower (cwe4800acs/cwe5800acs)


04 - Oven (cwe4800acb/ace)


05 - Oven (cwe4800acs)


06 - Supplemental Information


07 - Wiring Information

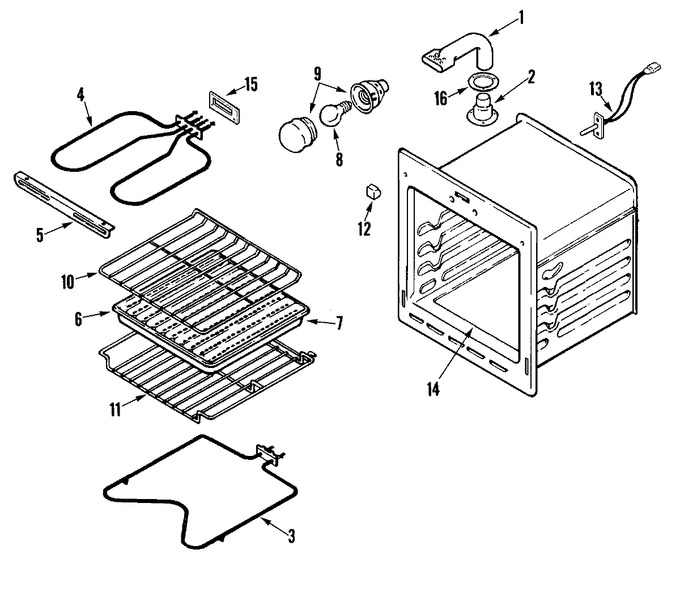

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003107		Tube, Vent	10	Appelez-nous	-
2	7101P287-60		Screw, Metal Grounding	10			$ 12.03
2	7505P226-60		Catalyst, Burner	10	Appelez-nous	-
3	WPY04000066		Element, Bake (2400w)   (Replaces: 74004073)	10		Immediately	$ 70.53
4	WP7406P203-60		Element, Broil   (Replaces: 74001234)	10			$ 154.52
4	7101P287-60		Screw, Metal Grounding	10			$ 12.03
5	3807F176-15		Support, Broil Element	10	Appelez-nous	-
6	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
6	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	11	Appelez-nous	-
7	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	11	Appelez-nous	-
7	Y3401F02019		Pan, Broil	10	Appelez-nous	-
8	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
9	WP74011278		Oven Light Assy.   (Replaces: 71002427)	10			$ 101.56
10	71003346		Rack, Oven (flat)	10			$ 70.11
11	7801P007-60		Rack, Offset	10	Appelez-nous	-
12	8003P009-60		Bumper, Door (square)	10	Appelez-nous	-
13	WP7430P044-60		Sensor, Oven   (Replaces: 74010385)	10		Immediately	$ 158.35
14	2205F003-19		Bottom, Oven	10	Appelez-nous	-
15	7201P003-60		Gasket, Element	10	Appelez-nous	-
16	7201P016-60		Gasket	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
