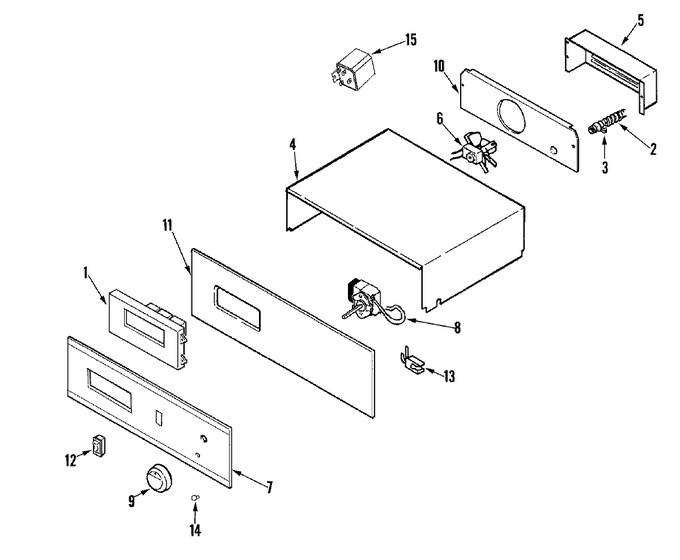

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010613 | Clock W/overlay (stl-elec) | 10 |
|
- | ||||
| 2 | 74010607 | Flex Cable | 10 |
|
- | ||||
| 2 | 8008P017-60 | Grommet | 10 |
|
- | ||||
| 3 | 7417P017-60 | Connector, Cable | 10 |
|
$ 9.81 | ||||
| 3 | 3605F131-51 | Plate, Reinforcement | 10 |
|
- | ||||
| 4 | 4005F150-51 | Cover, Wire | 10 |
|
- | ||||
| 5 | 4005F262-51 | Cover, Fan | 10 |
|
- | ||||
| 5 | 71001395 | Screw | 10 |
|
- | ||||
| 6 | 8008P004-60 | Grommet | 10 |
|
- | ||||
| 6 | 7427P031-60 | Fan Assy (Replaces: 74004450) | 10 |
|
$ 297.03 | ||||
| 6 | 7101P079-60 | Screw | 10 |
|
- | ||||
| 7 | 74010608 | Panel, Control (stl) | 10 |
|
- | ||||
| 7 | 8010P050-60 | Felt, Disc | 10 |
|
- | ||||
| 10 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 10 | 74007897 | Plate, Backing | 10 |
|
- | ||||
| 11 | 3605F195-80 | Plate, Backing | 10 |
|
- | ||||
| 12 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 74009176) | 10 |
|
$ 91.35 | ||||
| 13 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 14 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| NI | W10169639 | Manual, Use & Care | 13 |
|
- |
