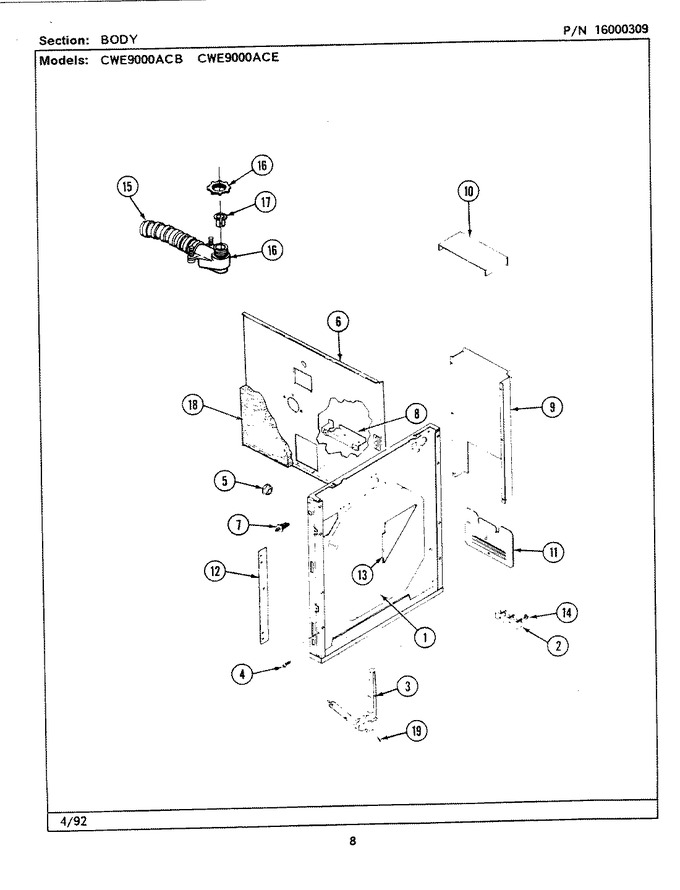

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)				$ 4.29
1	3601F161-80		Baffle, Oven Door		Appelez-nous	-
1	4009W065-80		Lining,inner Side(r)		Appelez-nous	-
1	4009W066-80		Lining,inner Side(l)		Appelez-nous	-
1	7103P045-60		Nut, Nylon		Appelez-nous	-
1	7103P040-60		Nut, Snap (wht)		Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
1	WP4159193		Screw   (Replaces: 7101P112-60)				$ 4.29
2	WPW10245259		Block, Wire Terminal   (Replaces: 7401P028-60)			Immediately	$ 31.65
3	7106P024-60		Hinge (incl. Spring)		Appelez-nous	-
4	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)				$ 4.29
5	8008P019-60		Grommet		Appelez-nous	-
6	4002F103-80		Back, Main		Appelez-nous	-
6	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
7	7403P105-60		Switch, Push (oven Lamp)		Appelez-nous	-
8	3605F163-80		Plate Conduit		Appelez-nous	-
9	4001F051-51		Housing,main Wire		Appelez-nous	-
10	4005F157-80		Cover, Wire Housing		Appelez-nous	-
11	4005F302-51		Cover Access		Appelez-nous	-
12	3601F106-51		Baffle, Side Panel		Appelez-nous	-
13	4005F163-51		Cover, Switch		Appelez-nous	-
14	7103P007-60		Nut, Level		Appelez-nous	-
15	3414F066-51		Tubing, Conduit		Appelez-nous	-
15	7109P002-60		Washer		Appelez-nous	-
16	7417P005-60		Connector, Conduit		Appelez-nous	-
17	8018P002-60		Sleeve, Tube		Appelez-nous	-
18	4804F002-60		Insulation, Rear		Appelez-nous	-
19	04000040		Spring, Mini-stanley		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
