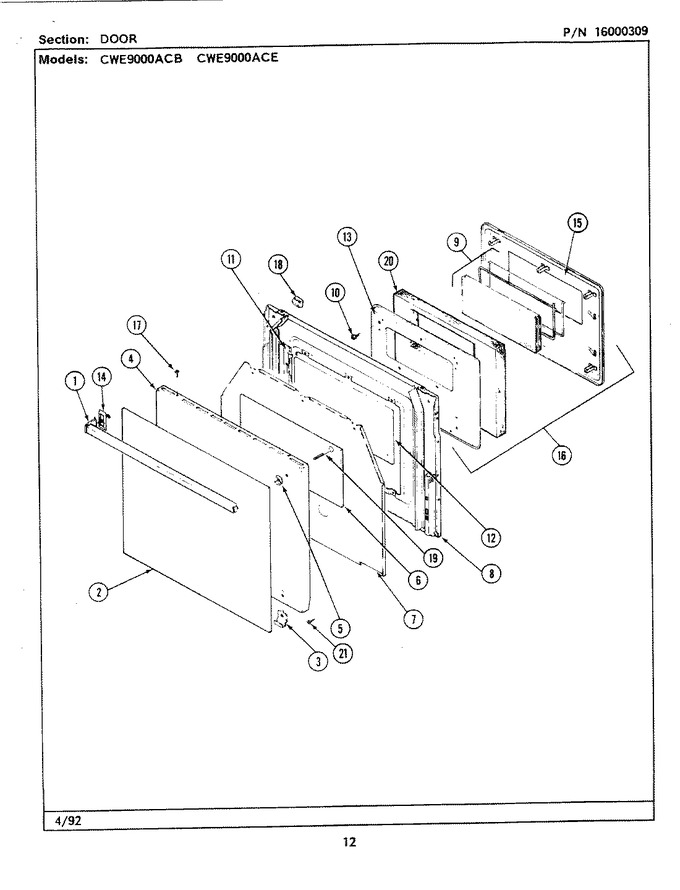

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7701P087-60		Handle, (black)	07	Appelez-nous	-
2	7902P120-60		Glass, Outer (black)	07	Appelez-nous	-
2	WP854334		Seal, Door Panel   (Replaces: 7208P009-60)	07			$ 11.95
3	8270P010-60		Tape, Retainer Clip	07	Appelez-nous	-
3	3819F010-70		Clip, Glass Retainer (blk)	07	Appelez-nous	-
4	2401W049-70		Panel, (black)	07	Appelez-nous	-
5	74003986		Spacer, Glass   (Replaces: 8010P016-60)	07			$ 13.08
6	7902P135-60		Glass, Clear	07	Appelez-nous	-
7	3601F093-51		Baffle	07	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P057-60)	07		Immediately	$ 6.85
8	7107P017-60		Rivet	07	Appelez-nous	-
8	2402W186-19		Lining Door	07	Appelez-nous	-
9	7112P051-60		Clip, Retainer	07	Appelez-nous	-
9	7902S303-60		Window Pak	07	Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P061-60)	07		Immediately	$ 6.85
11	3804F051-80		Retainer, Glass	07	Appelez-nous	-
12	7902P097-60		Glass, Inner	07			$ 63.87
13	2410F016-51		Pad, Inner	07	Appelez-nous	-
14	8010P044-60		Spacer, Handle (black)	07	Appelez-nous	-
15	2410W041-19		Pad, Door	07	Appelez-nous	-
16	2410A041-19		Pad, Assy.	07	Appelez-nous	-
17	7101P276-60		Screw (blk)	07	Appelez-nous	-
17	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	07			$ 9.89
18	8003P009-60		Bumper, Door (square)	07	Appelez-nous	-
19	W11164114		Screw   (Replaces: 7101P162-60)	07			$ 3.76
19	7101P012-60		Screw	07	Appelez-nous	-
20	7002P117-60		Insulation, Door Pad	07	Appelez-nous	-
21	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	07		Immediately	$ 12.62
