01 - Body
02 - Control Panel (cwe9000acb)
03 - Door
04 - Internal Controls
05 - Oven
SELECT A DIAGRAM
New Model Search:

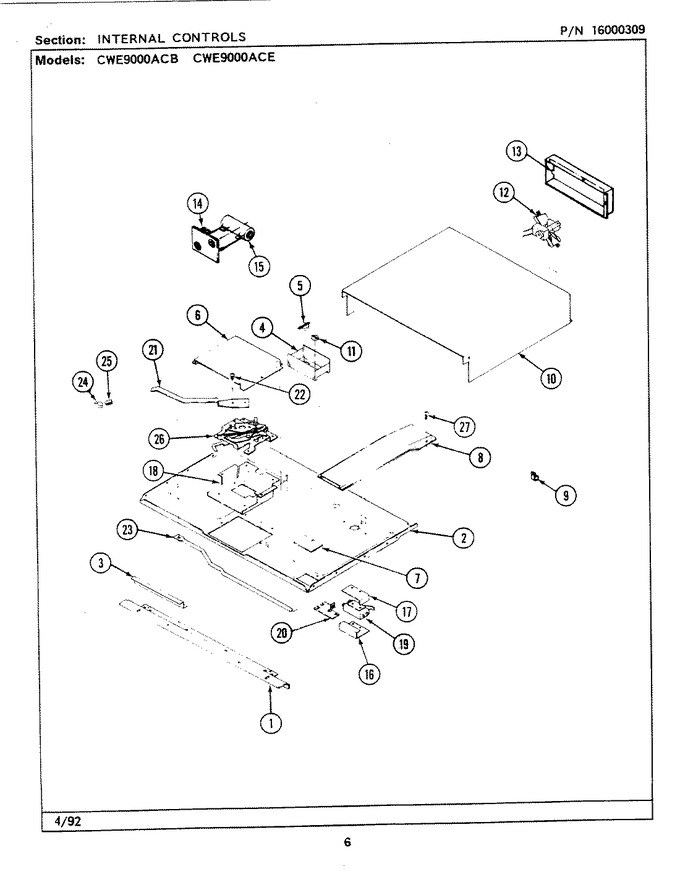

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 07 |
|
$ 15.94 | ||||
| 1 | 4012F018-80 | Front,burner Box Bottom | 07 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 07 |
|
Immediately | $ 6.85 | |||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 07 |
|
Immediately | $ 6.85 | |||
| 2 | 4011F198-80 | Bottom, Burner Box | 07 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 07 |
|
Immediately | $ 6.85 | |||
| 3 | 3604F149-80 | Shield, Terminal | 07 |
|
- | ||||
| 4 | 3807F219-51 | Support, Therm Disc | 07 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 07 |
|
$ 6.98 | ||||
| 5 | 7403P199-60 | Switch, Hi Limit | 07 |
|
- | ||||
| 6 | 4005F137-80 | Cover, Catch Assy. | 07 |
|
- | ||||
| 7 | 4005F139-51 | Cover, Switch | 07 |
|
- | ||||
| 8 | 4006W052-45 | Vent Box Assy. | 07 |
|
- | ||||
| 9 | 7111P002-60 | Clamp, Wire 3/4 | 07 |
|
- | ||||
| 10 | 4001F059-51 | Housing, Fan | 07 |
|
- | ||||
| 11 | 7403P089-60 | Switch, Hi Limit | 07 |
|
- | ||||
| 12 | 7417P002-60 | Connector, Pin | 07 |
|
- | ||||
| 12 | 8008P014-60 | Grommet, Nylon | 07 |
|
- | ||||
| 12 | 7427P004-60 | Fan, Assembly | 07 |
|
- | ||||
| 13 | 4005F262-51 | Cover, Fan | 07 |
|
- | ||||
| 14 | 7401P016-60 | Block, Terminal | 07 |
|
- | ||||
| 15 | 7413A002-60 | Fan, Resistor Asy | 07 |
|
- | ||||
| 16 | 7003P039-60 | Insulation, Switch | 07 |
|
- | ||||
| 17 | 7003P019-60 | Insulation, Switch (upper) | 07 |
|
- | ||||
| 18 | 3807F408-60 | Support, Catch Assy. | 07 |
|
- | ||||
| 19 | 7403P099-60 | Switch, Ovn Lock Asy----na | 07 |
|
- | ||||
| 20 | 3807F193-45 | Support, Lock Switch | 07 |
|
- | ||||
| 20 | 7101P031-60 | Screw | 07 |
|
- | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P018-60) | 07 |
|
$ 4.29 | ||||
| 21 | 8009P018-60 | Lever, Door Lock | 07 |
|
- | ||||
| 22 | 7116P003-60 | Bolt | 07 |
|
- | ||||
| 23 | 7807P012-60 | Link, Door Lock | 07 |
|
- | ||||
| 24 | 7701P088-60 | Handle, Latch (blk) | 07 |
|
- | ||||
| 25 | 7112P003-60 | Clip, Latch Handle | 07 |
|
- | ||||
| 26 | 8002P020-60 | Catch Assy. | 07 |
|
- | ||||
| 27 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 07 |
|
Immediately | $ 6.85 |
