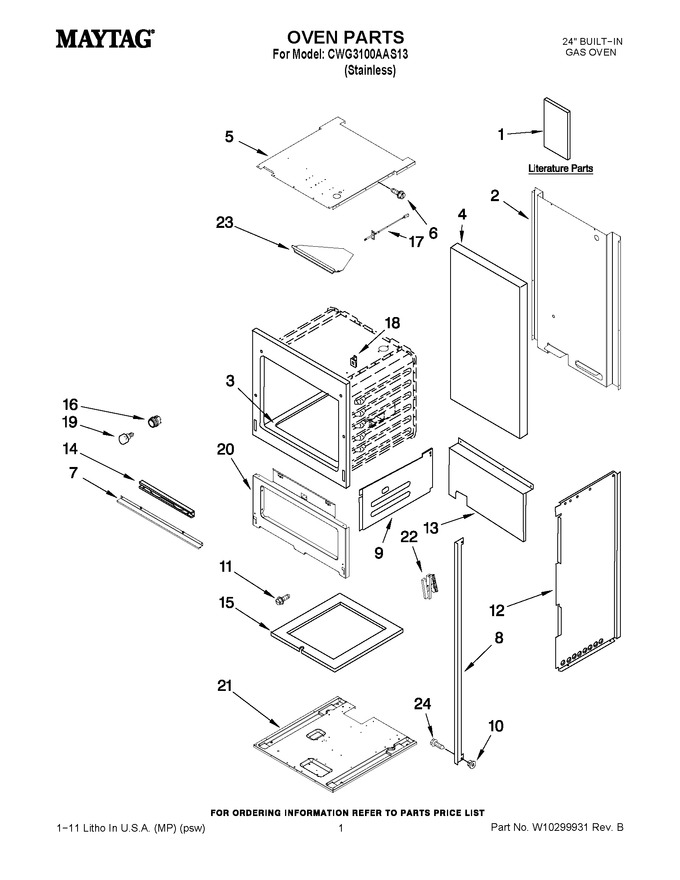

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203509 | Installation Instructions (english) |
|
- | |||||
| 1 | 8101P126-60 | Installation Instructions (french) |
|
- | |||||
| 1 | W10203503 | Owners Manual |
|
- | |||||
| 1 | W10194544 | Diagram, Wiring |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking (english) |
|
- | |||||
| 2 | 4002F323-51 | Back, Main |
|
- | |||||
| 3 | 5720D012-19 | Bottom, Oven Upper |
|
- | |||||
| 4 | 7002P160-60 | Insulation, Top & Rear |
|
- | |||||
| 4 | 7002P159-60 | Insulation, Wrapper |
|
- | |||||
| 5 | W10204425 | Cover, Box |
|
- | |||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 7 | 7754P003-60 | Extrusion, Bottom |
|
- | |||||
| 8 | 7750P201-60 | Extrusion, Side (left) |
|
- | |||||
| 8 | 7750P200-60 | Extrusion, Side (right) |
|
- | |||||
| 9 | 2228F006-19 | Side, Broiler (left) |
|
- | |||||
| 9 | 2228F005-19 | Side, Broiler (right) |
|
- | |||||
| 10 | WP7103P114-60 | Nut, Snap (Replaces: 7103P039-60) |
|
$ 9.89 | |||||
| 11 | 7101P287-60 | Screw |
|
$ 12.03 | |||||
| 12 | 2618F151-51 | Panel, Side (right) |
|
- | |||||
| 12 | 2618F152-51 | Panel, Side (left) |
|
- | |||||
| 13 | 4002F313-19 | Back, Broiler |
|
- | |||||
| 14 | 3807F379-19 | Support, Bottom |
|
- | |||||
| 15 | 2205F028-19 | Bottom, Oven Lower |
|
- | |||||
| 16 | 7408P035-60 | Receptacle, Lamp |
|
$ 30.71 | |||||
| 17 | WP74011433 | Sensor, Oven (Replaces: 7430P045-60) |
|
$ 216.97 | |||||
| 18 | 7112P020-60 | Clip, Oven Front |
|
- | |||||
| 19 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 20 | 3826F024-19 | Extension, Front |
|
- | |||||
| 21 | 4003F050-80 | Base-main |
|
- | |||||
| 22 | 74004059 | Hinge (oven) (Replaces: 7106P088-60) |
|
$ 153.66 | |||||
| 22 | 7106P085-60 | Hinge (broiler) |
|
$ 24.00 | |||||
| 23 | 4006W199-19 | Box-flue |
|
- | |||||
| 24 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 |
