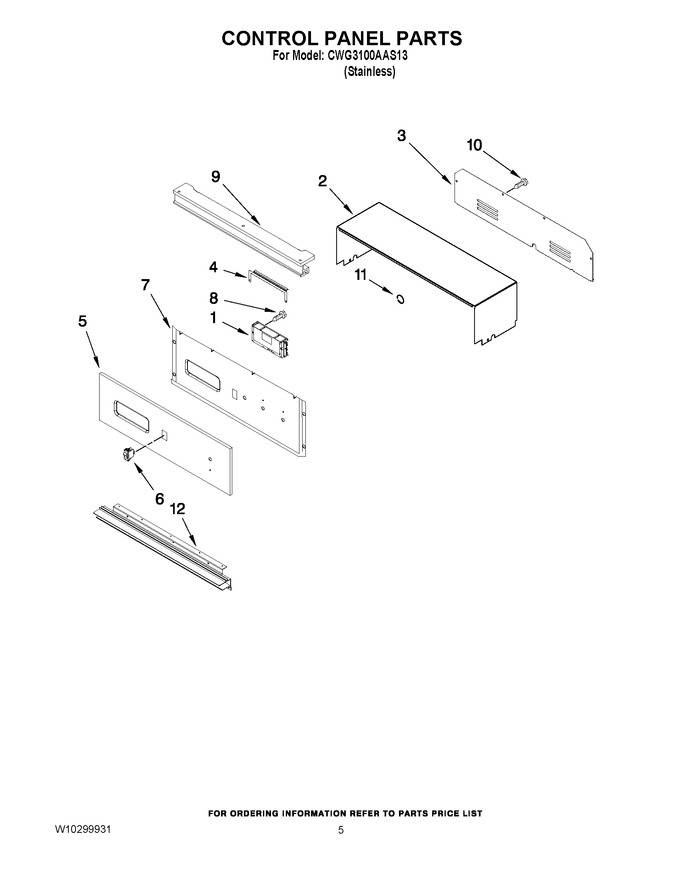

04 - Control Panel Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10201912		Clock   (Replaces: W10201912)				$ 395.18
2	W10214295		Cover, Wire Rear		Appelez-nous	-
3	W10204424		Cover, Wire		Appelez-nous	-
4	W10249336		Bracket, Control		Appelez-nous	-
5	W10196386		Panel, Control				$ 293.09
5	8010P050-60		Spacer, Felt		Appelez-nous	-
6	7403P067-60		Switch, Rocker   (Replaces: 7403P841-60)				$ 91.35
7	W10196355		Plate, Backing		Appelez-nous	-
8	WP59002061		Screw   (Replaces: 7101P077-60)				$ 6.98
9	7756P104-60		Extrusion, Top Front		Appelez-nous	-
10	7101P287-60		Screw				$ 12.03
11	8008P004-60		Grommet		Appelez-nous	-
12	W10220974		Extrusion, Vent		Appelez-nous	-
