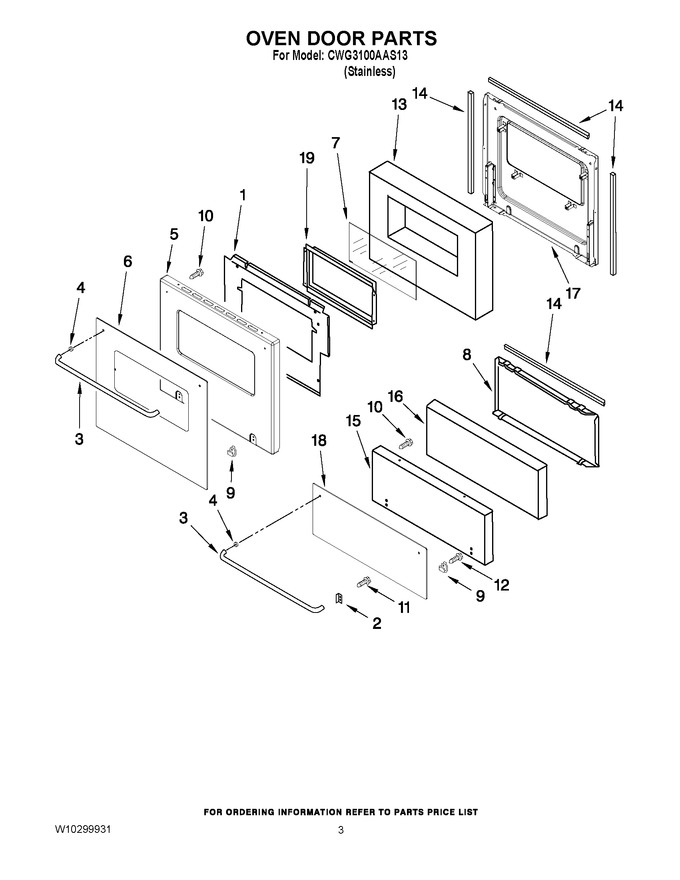

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F102-51		Baffle, Door		Appelez-nous	-
2	7112P011-60		Clip, Door Handle		Appelez-nous	-
3	WP7701P495-60		Handle, Door   (Replaces: 7701P495-60)				$ 169.48
4	8010P127-60		Spacer, Door Handle		Appelez-nous	-
5	2401F199-70		Panel, Oven Door		Appelez-nous	-
6	7922P055-60		Glass, Oven Door				$ 132.70
7	7902P715-60		Glass, Inner				$ 56.81
8	2404F051-19		Lining, Door		Appelez-nous	-
9	7112P159-60		Clip, Glass Retainer		Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P356-60)			Immediately	$ 6.85
11	7101P326-60		Screw		Appelez-nous	-
12	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
13	7002P015-60		Insulation, Door Pad		Appelez-nous	-
14	WP7212P006-60		Seal, Door (horizontal)   (Replaces: 7212P006-60)				$ 105.81
14	7212P003-60		Seal, Door (vertical)				$ 46.94
15	2416F069-70		Panel, Broiler		Appelez-nous	-
16	7002P067-60		Insulation, Broiler Door		Appelez-nous	-
17	2402W205-19		Pad, Oven Door		Appelez-nous	-
18	7914P016-60		Glass, Door				$ 52.28
19	3603F013-80		Frame, Window		Appelez-nous	-
