SELECT A DIAGRAM

01 - Cabinet

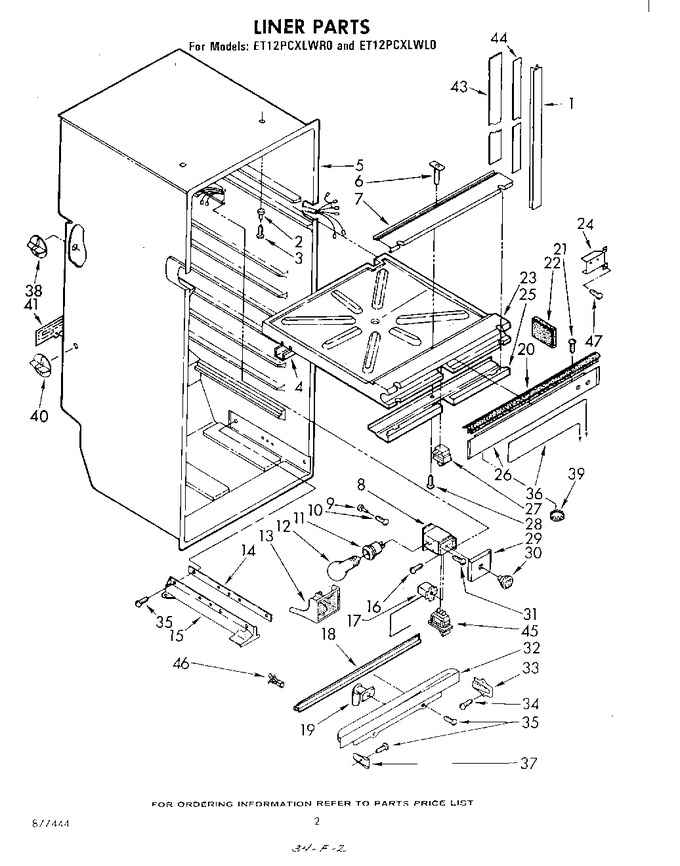

02 - Liner , Lit/optional


03 - Unit


04 - Door


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	981791		Cover, Tube Rear		Appelez-nous	-
2	845209		Spacer (2)		Appelez-nous	-
3	488706		Screw, 8-15 X 1-1/8		Appelez-nous	-
4	912439		Support, Compartment Separator		Appelez-nous	-
5	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
6	845215		Stud		Appelez-nous	-
7	845214		Trim, Top		Appelez-nous	-
8	937778		Box, Control		Appelez-nous	-
9	845210		Spacer (4)		Appelez-nous	-
10	488864		Screw, 8-15 X 1-1/2		Appelez-nous	-
11	850654		Socket		Appelez-nous	-
12	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 16.80
13	981774		Light Lens		Appelez-nous	-
14	981790		Gasket		Appelez-nous	-
15	981789		Cover Tube, Bottom		Appelez-nous	-
16	W11693756		Screw, 8 X 5/8 (3)   (Replaces: 488687)			Immediately	$ 12.65
17	912589		Thermostat & Barrier Assembly		Appelez-nous	-
18	982901		Gasket, Drip Rail		Appelez-nous	-
19	844645		Fitting, Drain		Appelez-nous	-
20	845208		Gasket		Appelez-nous	-
21	W11624204		Screw, 8-15 X 1/2   (Replaces: 486194)				$ 12.62
22	843439		Pad, Filler (2)		Appelez-nous	-
23	983034		Insulation, Compartment Separator		Appelez-nous	-
24	844563		Bracket, Center Rail (2)		Appelez-nous	-
25	845213		Trim, Bottom		Appelez-nous	-
26	912319		Rail, Center (golden Harvest)		Appelez-nous	-
26	912320		Rail, Center (almond)		Appelez-nous	-
26	912322		Rail, Center (white)		Appelez-nous	-
27	W11384469		Switch, Light   (Replaces: 549702)			Immediately	$ 33.51
28	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
29	845138		Cover, Control Box		Appelez-nous	-
30	845233		Knob		Appelez-nous	-
31	WP489128		Screw, 8-32 X 3/8 (2)   (Replaces: 488500)				$ 9.79
32	982821		Rail, Drip		Appelez-nous	-
33	845237		Cover, Splice Box		Appelez-nous	-
34	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
35	W11693756		Screw, 8-15 X 5/8 (5)   (Replaces: 487042)			Immediately	$ 12.65
36	549891		Heater, Mullion		Appelez-nous	-
37	845746		Retainer, Drip Rail		Appelez-nous	-
38	845737		Anchor, Screw (4)		Appelez-nous	-
39	845734		Plug, Hole (2)		Appelez-nous	-
40	845717		Anchor, Screw (11)		Appelez-nous	-
41	851116		Heater, Drain		Appelez-nous	-
43	851574		Insulation, Heat Exchanger (1/4`` X 1-1/4`` X 34-1/4``)		Appelez-nous	-
44	851575		Insulation, Heat Exchanger (5/16`` X 3/4`` X 34-1/2``)			Immediately	$ 159.48
45	936115		Switch, Power Miser		Appelez-nous	-
46	843945		Clip, Tubular (2)		Appelez-nous	-
47	877444		List, Parts		Appelez-nous	-
47	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
47	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
47	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
47	350956		Enamel, Almond (13 Oz. Spray Can)				$ 46.30
47	WP505587		Sealer (water, Bar) (1 Qt.)   (Replaces: 505587)			Immediately	$ 156.56
47	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
47	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
47	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
47	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
47	912567		Tech Sheet		Appelez-nous	-
47	912555		Consumer Buy Guide		Appelez-nous	-
47	912560		Energy Guide		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
47	350942		Primer White (13 Oz. Spray Can)				$ 80.69
47	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
47	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)			Immediately	$ 51.34
47	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
47	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
47	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
47	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
47	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
47	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
47	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
47	261890		Enamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
47	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
47	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
47	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
47	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
47	511881		Lacquer, Aluminum (12 Oz. Spray Can)				$ 278.35
47	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
47	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61

    View Diagram in Separate Window       Print Part List
