01 - Cabinet


02 - Liner , Lit/optional


03 - Unit


04 - Door


05 - Shelf

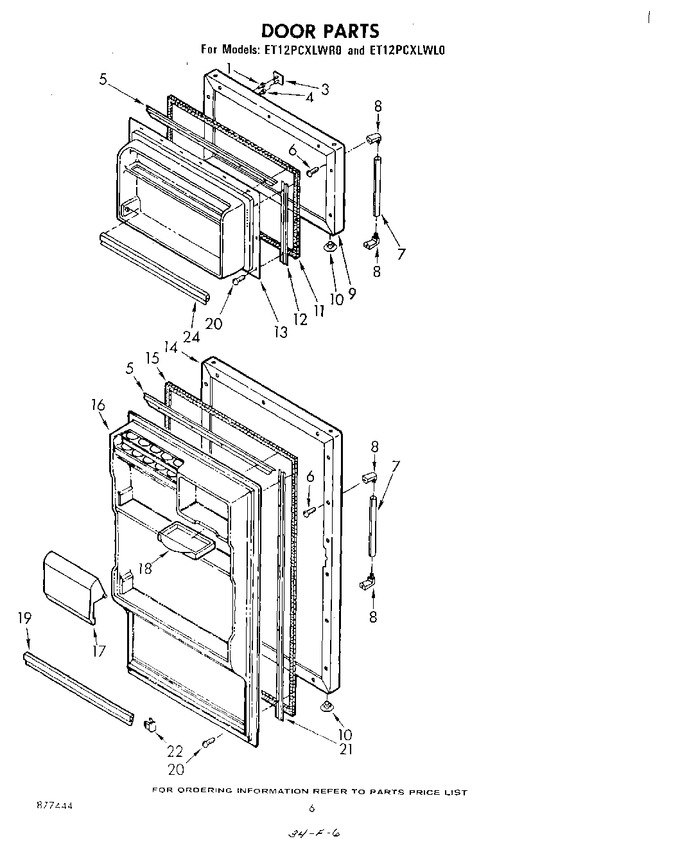

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	938889		Stud, Anchor		Appelez-nous	-
3	945119		Nameplate Assembly		Appelez-nous	-
4	659676		Clip, Tubular (2)		Appelez-nous	-
5	912351		Retainer, Top & Bottom (2)		Appelez-nous	-
6	488818		Screw, 3/16 X 34 (2)				$ 42.82
7	912393		Center, Handle		Appelez-nous	-
8	912394		Handle End (2)		Appelez-nous	-
9	912433		Door, Freezer R.h. (golden Harvest)		Appelez-nous	-
9	912431		Door, Freezer R.h. (white)		Appelez-nous	-
9	912436		Door, Freezer R.h. (almond Door, Freezer L.h.)		Appelez-nous	-
9	912434		Door, Freezer R.h. (golden Harvest)		Appelez-nous	-
9	912432		Door, Freezer R.h. (white)		Appelez-nous	-
9	912435		Door, Freezer R.h. (almond)		Appelez-nous	-
10	534927		Plug, Hole (white)		Appelez-nous	-
10	989197		Plug, Hole (almond)		Appelez-nous	-
10	989879		Plug, Hole (golden Harvest)		Appelez-nous	-
11	912565		Gasket, Freezer Door		Appelez-nous	-
12	912352		Retainer, Side (2)		Appelez-nous	-
13	912585		Panel, Interior		Appelez-nous	-
14	912430		Door, Refrigerator R.h. (almond Door, Refrigerator L.h.)		Appelez-nous	-
14	912425		Door, Refrigerator R.h. (white)		Appelez-nous	-
14	912426		Door, Refrigerator R.h. (white)		Appelez-nous	-
14	912428		Door, Refrigerator R.h. (golden Harvest)		Appelez-nous	-
14	912429		Door, Refrigerator R.h. (almond)		Appelez-nous	-
14	912427		Door, Refrigerator R.h. (golden Harvest)		Appelez-nous	-
15	912564		Gasket, Refrigerator Door		Appelez-nous	-
16	912582		Panel, Interior		Appelez-nous	-
17	912584		Door, Butter		Appelez-nous	-
18	520747		Tray, Butter		Appelez-nous	-
19	848506		Trim, Shelf (2)		Appelez-nous	-
20	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
21	912353		Retainer, Side (2)		Appelez-nous	-
22	912583		Retainer, Shelf (4)				$ 13.97
24	845507		Trim, Shelf		Appelez-nous	-
