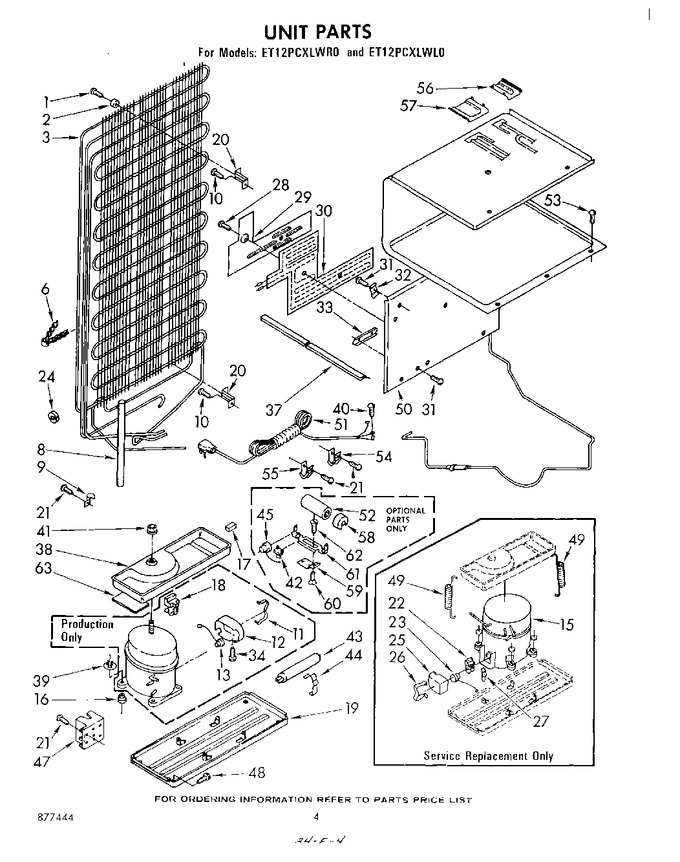

03 - Unit


04 - Door


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	488280		Screw, 8 X 3/4		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	912547		Condenser & Precooler Assembly		Appelez-nous	-
6	938232		Clip, Tube (2)		Appelez-nous	-
8	8316810		Tube, Drain   (Replaces: 912391)				$ 107.76
9	519405		Clamp, Drain Tube		Appelez-nous	-
10	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
11	938384		Stamp, Cover		Appelez-nous	-
12	938383		Cover, Terminal		Appelez-nous	-
13	941605		Overload Assembly		Appelez-nous	-
15	482055		Compressor (also Order 482331 Installation Kit)		Appelez-nous	-
16	912415		Grommet (4)		Appelez-nous	-
17	912485		Insert, Air Baffle (2)		Appelez-nous	-
18	938385		Relay		Appelez-nous	-
19	912413		Mounting Plate, Compressor		Appelez-nous	-
20	912412		Bracket (2)		Appelez-nous	-
21	488845		Screw, 8-32 X 1/2		Appelez-nous	-
22	989646		Relay		Appelez-nous	-
23	549478		Overload		Appelez-nous	-
24	850044		Spacer (2)		Appelez-nous	-
25	549336		Cover		Appelez-nous	-
26	549342		Strap		Appelez-nous	-
27	549086		Spring, Overload		Appelez-nous	-
28	00488412		Screw, 8-18 X 5/8 (2)   (Replaces: 488412)				$ 360.79
29	912405		Clamp, Heater		Appelez-nous	-
30	850016		Heater, Storage Plate		Appelez-nous	-
31	00488412		Screw, 8-18 X 5/8   (Replaces: 488412)				$ 360.79
32	40843		Clamp, Heater		Appelez-nous	-
33	510714		Clip, Thermostat		Appelez-nous	-
34	488487		Screw, Ground 10-32 X 5/16 (2)		Appelez-nous	-
37	848368		Gasket, Evaporator (2)		Appelez-nous	-
38	912408		Tray		Appelez-nous	-
39	912414		Clip (4)		Appelez-nous	-
40	WP489128		Screw, Ground   (Replaces: 488500)				$ 9.79
41	WP487939		Nut, Lock   (Replaces: 912437)				$ 6.95
42	482279		Relay (used On Start Kit 482278)		Appelez-nous	-
43	912416		Drier		Appelez-nous	-
44	WPW10339879		Clamp, Drier   (Replaces: 912417)				$ 7.11
45	482280		Overload (used On Start Kit 482278)		Appelez-nous	-
47	549961		Box, Junction		Appelez-nous	-
48	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488772)			Immediately	$ 7.07
49	912406		Spring, Bale Clip (2) (service Compressor Only)		Appelez-nous	-
50	912572		Evaporator & Heat Exchanger		Appelez-nous	-
51	912418		Cord, Service		Appelez-nous	-
52	WP482156		Capacitor Start (used On Start Kit 482278)   (Replaces: 482156)				$ 97.14
53	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 487909)			Immediately	$ 7.01
54	549193		Clamp, Cable				$ 12.05
55	653037		Cleat, Cord		Appelez-nous	-
56	912398		Cover, Evaporator Tube (single)		Appelez-nous	-
57	912397		Cover, Evaporator Tube (double)		Appelez-nous	-
58	482157		Cap, Capacitor (used On Start Kit 482278)		Appelez-nous	-
59	549939		Bracket, Mounting (used On Start Kit 482278)		Appelez-nous	-
60	488487		Screw (used On Start Kit 482278)		Appelez-nous	-
61	482158		Bracket, Capacitor (used On Start Kit 482278)		Appelez-nous	-
62	487631		Screw (2) (used On Start Kit 482278)		Appelez-nous	-
63	482278		Start Kit		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 117.64
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
63	301774		Pad, Sound		Appelez-nous	-
63	978026		Valve, Access (5/16``)			Immediately	$ 115.28
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
63	978028		Valve, Access (1/2)		Appelez-nous	-
