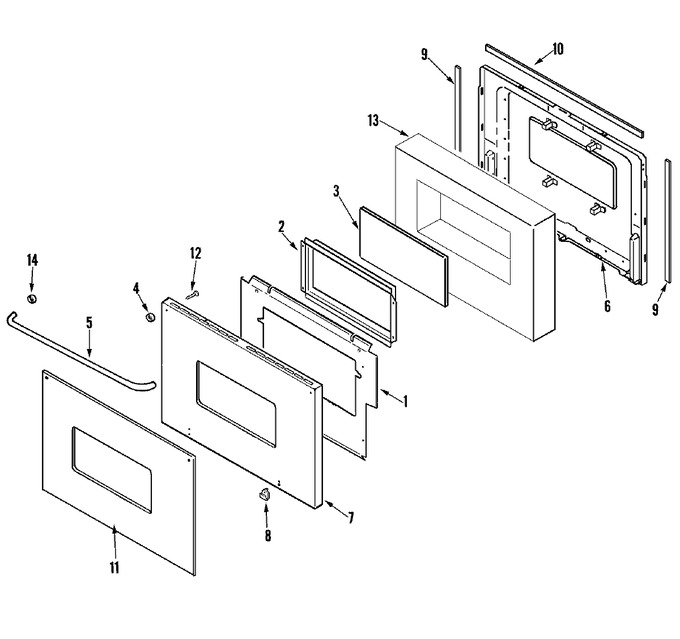

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F103-51 | Baffle, Door | 10 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 1 | 3601F102-51 | Baffle, Upper Door | 10 |
|
- | ||||
| 2 | 3603F013-80 | Frame, Window----na | 10 |
|
- | ||||
| 2 | 74008917 | Gasket, Window Baffle | 10 |
|
$ 25.50 | ||||
| 3 | 74009406 | Glass, Inner Door | 10 |
|
$ 54.10 | ||||
| 4 | 74003986 | Spacer, Door Glass (blk) | 10 |
|
$ 13.08 | ||||
| 5 | WP7701P495-60 | Handle, Door (stl) (Replaces: 74010606) | 10 |
|
$ 169.48 | ||||
| 6 | 74001851 | Lining, Door | 10 |
|
- | ||||
| 6 | 74001905 | Lining, Door | 10 |
|
- | ||||
| 7 | 74004991 | Panel, Oven Door (blk) | 10 |
|
- | ||||
| 7 | WP98008545 | Screw (blk) (Replaces: 74009537) | 10 |
|
$ 15.94 | ||||
| 7 | 74010631 | Panel, Oven Door (blk) | 10 |
|
- | ||||
| 8 | 74010609 | Clip, Glass | 10 |
|
- | ||||
| 8 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 9 | 7212P007-60 | Seal, Door (vertical) | 10 |
|
$ 47.10 | ||||
| 9 | 7212P003-60 | Seal, Oven Door | 10 |
|
$ 46.94 | ||||
| 10 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 10 |
|
$ 105.81 | ||||
| 10 | 7212P014-60 | Seal, Door (top) | 10 |
|
$ 48.10 | ||||
| 11 | 74010628 | Door, Panel/glass Assy (stl) | 10 |
|
- | ||||
| 11 | 74010620 | Panel, Door Glass Assy. (stl) | 10 |
|
- | ||||
| 12 | 7101P326-60 | Screw | 10 |
|
- | ||||
| 13 | 7002P019-60 | Insulation, Door Lower | 10 |
|
- | ||||
| 13 | 7002P015-60 | Insulation, Door | 10 |
|
- | ||||
| 14 | 8010P090-60 | Spacer, Handle (blk) | 10 |
|
- |
