SELECT A DIAGRAM

Diagram for 01 - Control Panel
01 - Control Panel

Diagram for 02 - Door (upper & Lower)
02 - Door (upper & Lower)

Diagram for 03 - Gas Controls
03 - Gas Controls

Diagram for 04 - Oven/body
04 - Oven/body

No Diagram Image Available
05 - Supplemental Information

Diagram for 06 - Wiring Information
06 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8008P004-60 Grommet 10 Appelez-nous -
1 W10204425 Cover Box Wall Oven   (Replaces: 4005F152-51) 10 Appelez-nous -
1 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

2 7101P287-60 Screw, Metal Grounding 10 Special Order $ 12.03

2 4006W077-19 Box, Flue Assy 10 Appelez-nous -
3 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

3 74001988 Back, Main 10 Appelez-nous -
4 74001883 Insulation, Wrapper 10 Appelez-nous -
4 74001850 Insulation, Wrapper 10 Appelez-nous -
5 W11772394 Screw   (Replaces: 7101P345-60) 10 In-Stock Immediately $ 10.94

5 74009599 Cord, Power 10 Appelez-nous -
6 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

6 2618F115-51 Panel, Side (rt) 10 Appelez-nous -
6 2618F116-51 Panel, Side (lt) 10 Appelez-nous -
7 74001856 Hinge Assy. 10 Special Order $ 123.16

7 WP4159193 Screw   (Replaces: 7101P115-60) 10 Special Order $ 4.29

8 WP98008545 Screw (blk)   (Replaces: 74009537) 10 Special Order $ 15.94

8 WP7103P114-60 Nut, Snap (round-wht)   (Replaces: 7103P039-60) 10 Special Order $ 9.89

8 74001903 Trim, Side (lt-blk) 10 Appelez-nous -
8 74001902 Trim, Side (rt-blk) 10 Appelez-nous -
8 W11233072 Screw (zinc)   (Replaces: 7101P041-60) 10 In-Stock Immediately $ 12.62

9 7103P100-60 Nut, Tinnerman 10 Appelez-nous -
9 WP7101P126-60 Screw   (Replaces: 7101P058-60) 10 In-Stock Immediately $ 6.85

9 3601F109-45 Baffle 10 Appelez-nous -
10 7212P014-60 Seal, Door (top) 10 Special Order $ 48.10

11 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

11 7112P020-60 Clip, Oven Front 10 Appelez-nous -
12 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

12 W11233072 Screw, (no.8x1/2``pph)   (Replaces: 74009268) 10 In-Stock Immediately $ 12.62

12 74001925 Base, Main 10 Appelez-nous -
13 74001846 Extrusion, Bottom (blk) 10 Appelez-nous -
13 WP98008545 Screw (blk)   (Replaces: 74009537) 10 Special Order $ 15.94

14 74004048 Bottom, Oven 10 Appelez-nous -
15 3807F029-80 Support 10 Appelez-nous -
15 5720A011-23 Support, Oven Bottom 10 Appelez-nous -
15 WP7101P126-60 Screw   (Replaces: 7101P058-60) 10 In-Stock Immediately $ 6.85

15 7101P287-60 Screw, Metal Grounding 10 Special Order $ 12.03

16 74004661 Bottom, Upper Oven 10 Appelez-nous -
17 W11233072 Screw, (no.8x1/2``pph)   (Replaces: 74009268) 10 In-Stock Immediately $ 12.62

17 WP74011433 Sensor, Oven (short)   (Replaces: 74003094) 10 Special Order $ 216.97

18 8003P009-60 Bumper, Door (square) 10 Appelez-nous -
19 7408P035-60 Receptacle, Oven Bulb 10 Special Order $ 30.71

20 8009 Bulb-oven   (Replaces: 7407P103-60) 10 In-Stock Immediately $ 16.80

21 7801P034-60 Oven Rack 10 Appelez-nous -
21 7801P005-60 Rack 10 Appelez-nous -
22 Y3413F01619 Insert, Broil Pan 10 Appelez-nous -
23 Y3401F02019 Pan, Broil 10 Appelez-nous -
24 WP7101P126-60 Screw, Frame   (Replaces: 7101P126-60) 10 In-Stock Immediately $ 6.85

24 74010632 Support, Oven (rear) 10 Appelez-nous -
25 74004074 Cover, Voltage 10 Appelez-nous -
25 WP7101P126-60 Screw, Frame   (Replaces: 7101P126-60) 10 In-Stock Immediately $ 6.85

NI W11233072 Screw, (no.8x1/2``pph)   (Replaces: 74009268) 10 In-Stock Immediately $ 12.62

NI 7103P040-60 Nut, Snap (wht) 10 Appelez-nous -
NI 4005F011-35 Cover, Cap Hole 10 Appelez-nous -
NI WP7103P114-60 Nut, Snap   (Replaces: 7103P114-60) 10 Special Order $ 9.89


    View Diagram in Separate Window     Print Icon   Print Part List

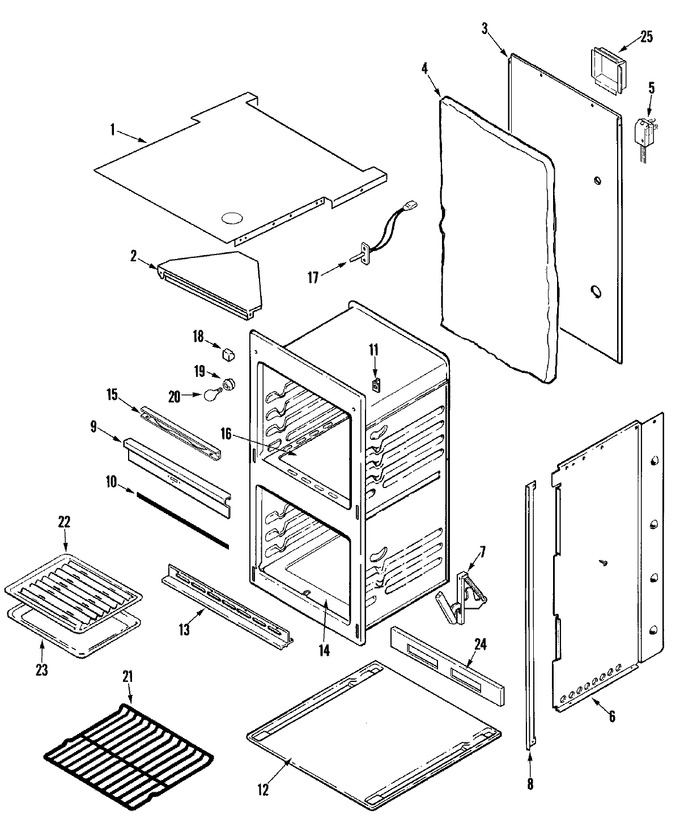

Diagram for CWG3600AAS
