View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door (upper & Lower)
03 - Gas Controls
04 - Oven/body
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

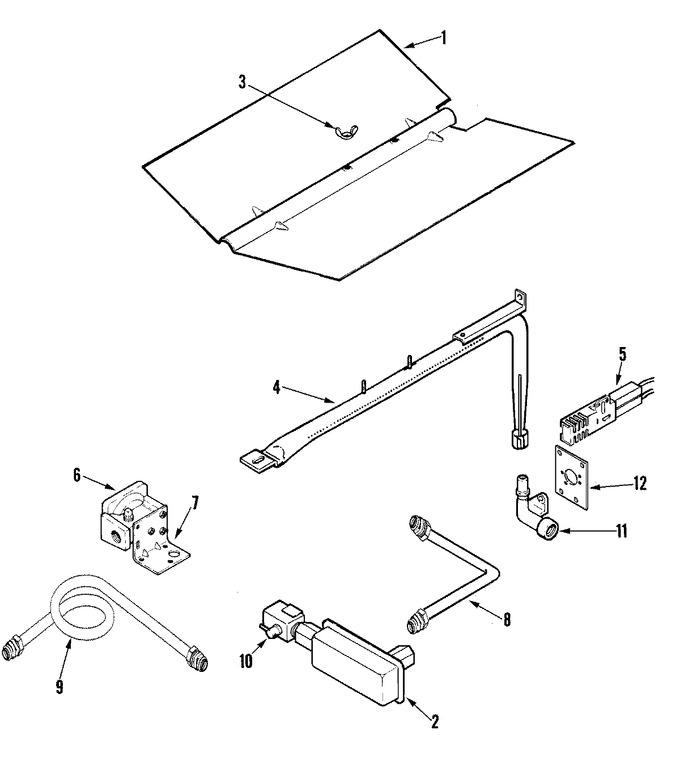

| 1 | 3601F215-45 | Baffle, Oven Burner | 10 |
|
- | ||||
| 2 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 10 |
|
$ 6.77 | ||||
| 2 | 74008256 | Valve, Safety Lp(24) | 10 |
|
- | ||||
| 3 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 4 | 74004077 | Burner, Bake | 10 |
|
$ 41.66 | ||||
| 4 | W11233072 | Screw, (no.8x1/2``pph) (Replaces: 74009268) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 74007498 | Igniter, Oven | 10 |
|
Immediately | $ 78.40 | |||
| 5 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 6 | 7510P081-60 | Regulator, Pressure (Replaces: 74005560) | 18 |
|
- | ||||
| 7 | 74001932 | Support, Regulator | 10 |
|
- | ||||
| 7 | 71001395 | Screw | 10 |
|
- | ||||
| 8 | 74006350 | Tubing, Oven Valve | 10 |
|
- | ||||
| 9 | 74005460 | Tubing (24`` Double W/o) | 10 |
|
- | ||||
| 10 | 74006866 | Valve, Shut Off | 10 |
|
- | ||||
| 11 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 11 | 74006351 | Fitting, Burner | 10 |
|
- | ||||
| 12 | 3807F122-34 | Support | 10 |
|
- | ||||
| 12 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 |
