01 - Body
02 - Body (rear)
03 - Control Panel
04 - Door
05 - Drawer
06 - Gas Controls
07 - Oven
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

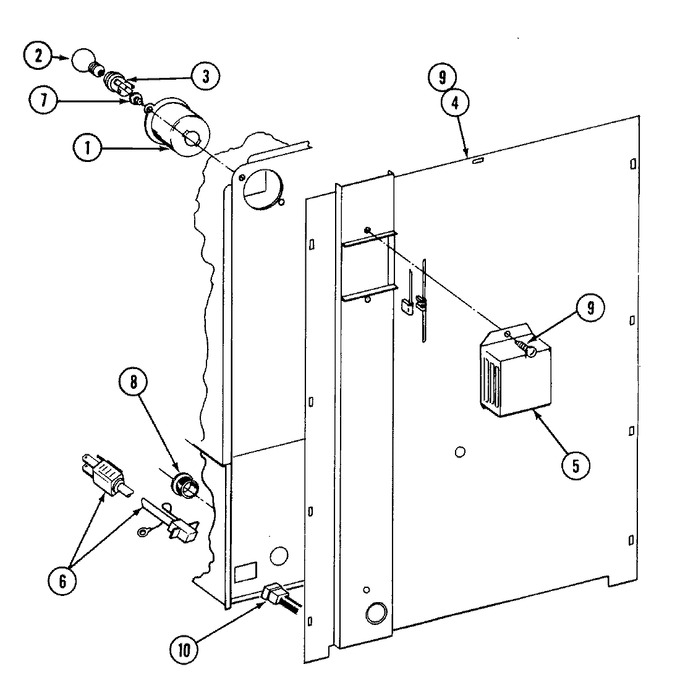

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8028P001-60 | Box, Oven Light | 10 |
|
- | ||||
| 2 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 3 | 7408P037-60 | Receptacle, Bulb | 10 |
|
- | ||||
| 4 | 4002F101-51 | Back, Main | 10 |
|
- | ||||
| 5 | 4005F229-51 | Cover, Light Socket | 10 |
|
- | ||||
| 6 | 5700A317-60 | Power Cord | 10 |
|
- | ||||
| 7 | WP7101P126-60 | Screw, No.10a X 1/2 (Replaces: 7101P178-60) | 10 |
|
Immediately | $ 6.85 | |||
| 8 | 8008P002-60 | Bushing, Snap | 10 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 | |||
| 10 | 7401P017-60 | Block, Disconnect (pin) | 10 |
|
- |
