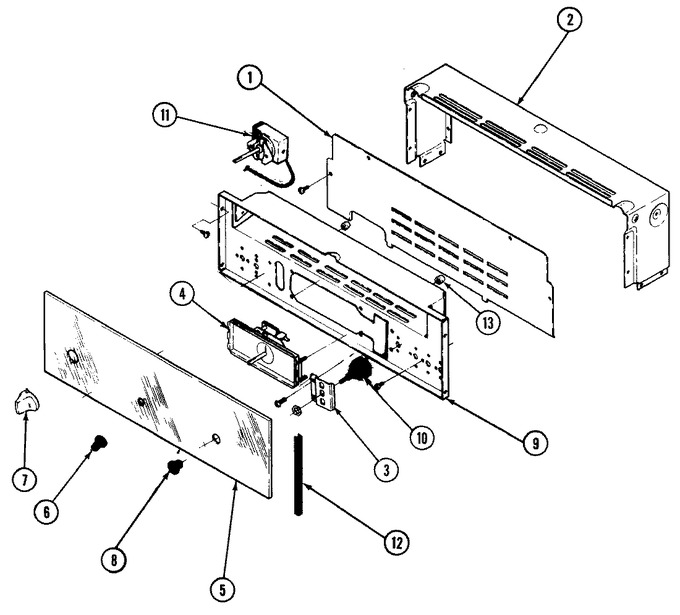

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Body (rear)
03 - Control Panel
04 - Door
05 - Drawer
06 - Gas Controls
07 - Oven
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F098-51 | Back Control Box | 10 |
|
- | ||||
| 2 | 4006F057-51 | Box Control | 10 |
|
- | ||||
| 3 | 3801F156-80 | Bracket, Switch Mtg | 10 |
|
- | ||||
| 4 | 7602P060-60 | Clock, Regulator | 10 |
|
- | ||||
| 5 | 7912P038-60 | Glass, Control | 10 |
|
- | ||||
| 6 | 7711P126-60 | Knob, Clock | 10 |
|
- | ||||
| 7 | 7711P350-60 | Knob, Control (chr) | 10 |
|
- | ||||
| 8 | 7214P007-60 | Sleeve, Switch (blk) | 10 |
|
- | ||||
| 9 | 3807F223-51 | Support, Clock | 10 |
|
- | ||||
| 10 | 7403P109-60 | Switch, Push (blk) | 10 |
|
- | ||||
| 11 | 7404P101-60 | Thermostat | 10 |
|
- | ||||
| 12 | 3608F019-70 | Trim, Bkgd. Glass | 10 |
|
- | ||||
| 13 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 10 |
|
$ 4.00 | ||||
| NI | 5195A064-60 | Wires, Control Panel | 10 |
|
- | ||||
| NI | 16002079 | Guide, Quick Ref - Admiral | 10 |
|
- | ||||
| NI | 8112P064-60 | Manual, Use & Care | 10 |
|
- |
