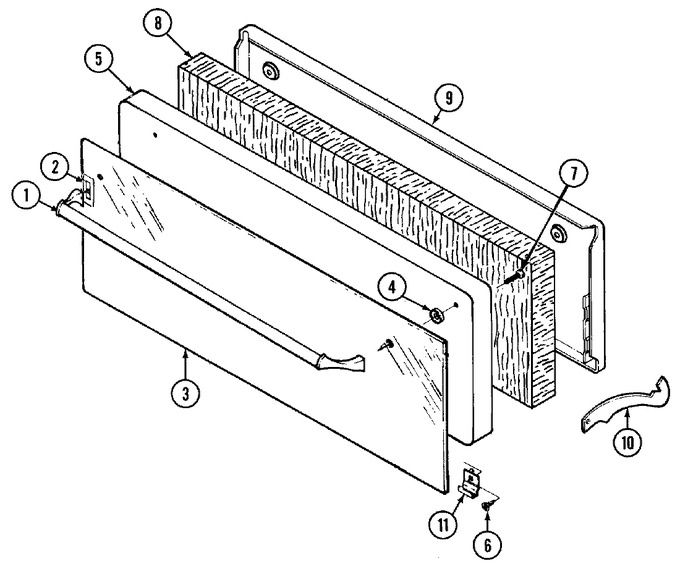

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7701P024-60 | Handle, Door (blk) | 10 |
|
$ 67.19 | ||||
| 2 | 8010P015-60 | Spacer, Handle (blk) | 10 |
|
- | ||||
| 3 | 7914P009-60 | Glass Broiler Panel | 10 |
|
- | ||||
| 4 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 10 |
|
$ 13.08 | ||||
| 5 | 2403W024-70 | Panel Drawer | 10 |
|
- | ||||
| 6 | WP7101P126-60 | Screw, No.10-16ab (Replaces: 7101P221-60) | 10 |
|
Immediately | $ 6.85 | |||
| 7 | 7101P089-60 | Screw, Door Handle | 10 |
|
- | ||||
| 8 | 7002P067-60 | Insulation, Broiler Door | 10 |
|
- | ||||
| 9 | 2404W024-19 | Lining Door Broiler | 10 |
|
- | ||||
| 10 | 3418F041-34 | Hinge | 10 |
|
- | ||||
| 11 | 7112P093-60 | Clip, Glass (blk) | 10 |
|
$ 12.67 | ||||
| 11 | 8270P065-60 | Tape | 10 |
|
- |
