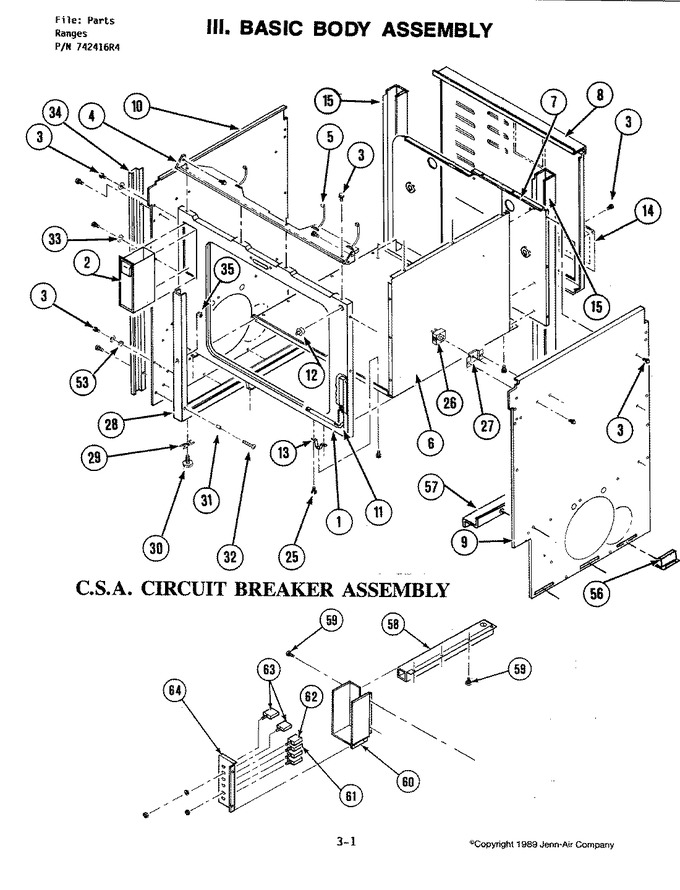

01 - Basic Body Assembly (d140-c)


02 - Blower Assembly/plenum (d140-c)


03 - Control Panel Assembly (d140-c)


04 - Convection Fan


05 - Cooling Fan (d140-c)


06 - Door (d140-c)


07 - Internal Controls (d140-c)


08 - Oven Liner Assembly (d140-c)


09 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	702329		Closure, Front	1	Appelez-nous	-
2	Y712001		Container,grease Assembly	1	Appelez-nous	-
3	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
4	712002		Angle, Mount	1	Appelez-nous	-
5	WPW10339879		Tie, Cable   (Replaces: 701678)	1			$ 7.11
6	Y702319		Panel, Bottom & Side (rt)	1	Appelez-nous	-
7	703619		Cover,louver	1	Appelez-nous	-
7	Y702306		Back, Inner	1	Appelez-nous	-
8	W10124350		Not Required Part Or See Note Cover, Rear	1	Appelez-nous	-
9	DE81-04418A		Panel,side (rt)   (Replaces: 703485)	1			$ 112.47
10	DE81-09198A		Panel, Side (lt)   (Replaces: 703484)	1			$ 490.59
11	Y703419		Hinge	1	Appelez-nous	-
12	701666		Switch, Door	1	Appelez-nous	-
13	702658		Bracket, Hat	1	Appelez-nous	-
14	702333		Cover, Access(r.h)	1	Appelez-nous	-
15	702302		Support, Tube	1	Appelez-nous	-
25	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
26	701698		Switch, Broil Cycle	1	Appelez-nous	-
27	702729		Bracket	1	Appelez-nous	-
28	712192		Rail, Support Assembly	1	Appelez-nous	-
28	703483		Channel, Support	1	Appelez-nous	-
29	700903		Anchor Level	1	Appelez-nous	-
30	W11117769		Leveler,adjust   (Replaces: Y708696)	1		Immediately	$ 16.61
31	W10124350		Not Required Part Or See Note Spacer	1	Appelez-nous	-
32	W10124350		Not Required Part Or See Note Screw	1	Appelez-nous	-
33	00702462		Washer, Conical   (Replaces: 702462)	1			$ 1,015.54
34	703486		Trim, Side	1	Appelez-nous	-
35	W10124350		Not Required Part Or See Note Clip, Tinnerman	1	Appelez-nous	-
43	Y701686		Pin, Cotter	1	Appelez-nous	-
53	712005		Washer, Flat	1	Appelez-nous	-
54	702336		Angle, Oven Support	1	Appelez-nous	-
56	W10124350		Not Required Part Or See Note Clip, Panel Mounting	1	Appelez-nous	-
57	700743		Switch, Selector	1	Appelez-nous	-
57	702541		Wire Harness	1	Appelez-nous	-
57	Y702741		Ff Carton	1	Appelez-nous	-
58	DE81-07483A		Wireway   (Replaces: 703492)	1			$ 400.73
59	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
60	702523		Enclosure, Circuit Breaker	1	Appelez-nous	-
61	Y715443		Breaker, Circuit	1	Appelez-nous	-
62	701774		Circuit Breaker (15 Amp)	1	Appelez-nous	-
63	702612		Harness, Circuit Breaker	1	Appelez-nous	-
63	Y702613		Breaker, Circuit (30 Amp)	1	Appelez-nous	-
64	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
64	702524		Cover, Circuit Breaker	1	Appelez-nous	-
NI	701670		Knob, Lever	1	Appelez-nous	-
NI	701671		Spring, Knob	1	Appelez-nous	-
NI	Y702299		Latch, Lever	1	Appelez-nous	-
NI	707407		Screw	1			$ 6.42
NI	Y702350		Insulator	1	Appelez-nous	-
NI	Y702360		Switch, Solenoid	1	Appelez-nous	-
NI	Y702359		Switch, Solenoid Micro	1	Appelez-nous	-
NI	WP7403P899-60		Switch, Hi-limit   (Replaces: Y702548)	1		Immediately	$ 181.29
NI	DE81-04441A		Screw   (Replaces: 702380)	1			$ 329.62
NI	Y702607		Block, Terminal	1	Appelez-nous	-
NI	Y702332		Latch	1	Appelez-nous	-
NI	702556		Gussett (rt)	1	Appelez-nous	-
NI	701526		Screw	1	Appelez-nous	-
NI	W10124350		Not Required Part Or See Note Screw	1	Appelez-nous	-
NI	707161		Nut	1	Appelez-nous	-
NI	WP8203546		Block, Terminal   (Replaces: Y702284)	1		Immediately	$ 27.12
NI	702898		Insulator	1	Appelez-nous	-
NI	702697		Bracket,stiffener	1	Appelez-nous	-
NI	702318		Panel, Top	1	Appelez-nous	-
NI	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
NI	Y701623		Block, Terminal	1	Appelez-nous	-
NI	Y702750		Limit, Fan	1	Appelez-nous	-
NI	WPW10253196		Screw   (Replaces: Y707113)	1			$ 3.76
NI	702746		Tie, Mount Cable	1	Appelez-nous	-
NI	Y702526		Solenoid	1	Appelez-nous	-
NI	702557		Gussett (lt)	1	Appelez-nous	-
