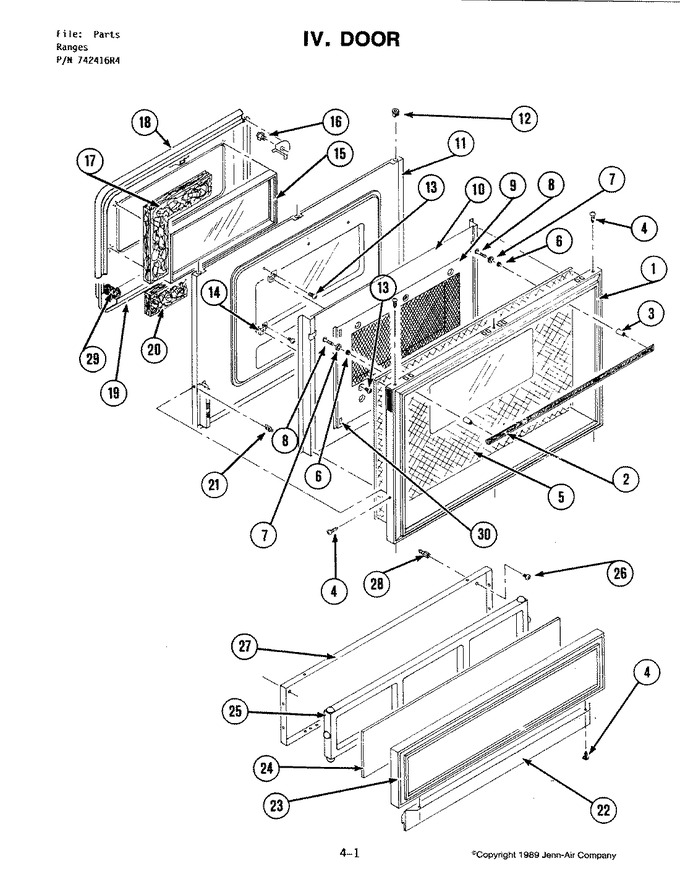

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 703780 | Frame, Oven Door | 3 |
|
- | ||||
| 1 | 702320 | Frame, Oven Door | 1 |
|
- | ||||
| 2 | Y702322 | Handle, Door | 1 |
|
- | ||||
| 2 | Y703429 | Handle, Door | 3 |
|
- | ||||
| 3 | 701832 | Post, Mounting | 1 |
|
- | ||||
| 3 | Y703430 | Pad, Mounting | 3 |
|
- | ||||
| 4 | W11233072 | Screw (Replaces: Y708733) | 3 |
|
Immediately | $ 12.62 | |||
| 4 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 5 | Y702321 | Glass, Screened | 1 |
|
- | ||||
| 5 | Y703774 | Glass, Screened (blk) | 3 |
|
- | ||||
| 6 | Y703433 | Bushing | 3 |
|
- | ||||
| 6 | 715939 | Bushing | 1 |
|
- | ||||
| 7 | Y700446 | Washer | 1 |
|
$ 5.27 | ||||
| 8 | WP660533 | Element, Conv. 9`` (Replaces: Y703421) | 3 |
|
Immediately | $ 39.47 | |||
| 8 | Y700570 | Screw | 1 |
|
- | ||||
| 9 | 702323 | Panel, Perforated | 1 |
|
- | ||||
| 9 | DE81-09358A | Panel, Perforated (upr) (Replaces: 703784) | 3 |
|
$ 54.82 | ||||
| 10 | 702305 | Baffle-door | 1 |
|
- | ||||
| 11 | 712189 | Liner, Oven Door Weld | 1 |
|
- | ||||
| 12 | 702657 | Nut, Push-in | 1 |
|
- | ||||
| 13 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 14 | 701652 | Bracket, Stand-off | 1 |
|
- | ||||
| 15 | 703804 | Pack, Window | 1 |
|
- | ||||
| 16 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 17 | 702293 | Insulation | 1 |
|
- | ||||
| 18 | WPY702338 | Seal, Oven Door (Replaces: Y702338) | 1 |
|
Immediately | $ 172.53 | |||
| 19 | 712011 | Plug, Oven Door Weld | 1 |
|
- | ||||
| 20 | 702292 | Insulation, Bottom | 1 |
|
- | ||||
| 21 | Y700834 | Clip | 1 |
|
- | ||||
| 22 | W10124350 | Not Required Part Or See Note Panel, Kick | 1 |
|
- | ||||
| 23 | W10124350 | Not Required Part Or See Note Frame, Door | 1 |
|
- | ||||
| 24 | W10124350 | Not Required Part Or See Note Panel, Base | 1 |
|
- | ||||
| 25 | W10124350 | Not Required Part Or See Note Spacer, Base Door | 1 |
|
- | ||||
| 26 | W10124350 | Not Required Part Or See Note Screw | 1 |
|
- | ||||
| 27 | W10124350 | Not Required Part Or See Note Liner, Base Door | 1 |
|
- | ||||
| 28 | W10124350 | Not Required Part Or See Note Stud, Ball | 1 |
|
- | ||||
| 29 | 702279 | Insulation-top & Sides | 1 |
|
- | ||||
| 30 | Y712010 | Plate, Latch (upper) | 1 |
|
- | ||||
| 30 | W10124350 | Not Required Part Or See Note Bumper Button | 1 |
|
- |
