Diagram for 01 - Basic Body Assembly (d140-c)
01 - Basic Body Assembly (d140-c)

Diagram for 02 - Blower Assembly/plenum (d140-c)
02 - Blower Assembly/plenum (d140-c)

Diagram for 03 - Control Panel Assembly (d140-c)
03 - Control Panel Assembly (d140-c)

Diagram for 04 - Convection Fan
04 - Convection Fan

Diagram for 05 - Cooling Fan (d140-c)
05 - Cooling Fan (d140-c)

Diagram for 06 - Door (d140-c)
06 - Door (d140-c)

Diagram for 07 - Internal Controls (d140-c)
07 - Internal Controls (d140-c)

Diagram for 08 - Oven Liner Assembly (d140-c)
08 - Oven Liner Assembly (d140-c)

Diagram for 09 - Top
09 - Top


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
9 WP74003976 Washer   (Replaces: 702592) 1 Special Order $ 6.47

9 701526 Screw 1 Appelez-nous -
10 701707 Plate, Convection Front 1 Appelez-nous -
11 WP488234 Screw   (Replaces: 708861) 1 Special Order $ 6.07

12 701709 Screw, Set 1 Appelez-nous -
13 715910 Washer, Lock 1 Appelez-nous -
14 701711 Wheel, Convection 1 Appelez-nous -
15 DE81-03744A Plate, Convection Back   (Replaces: 701712) 1 Special Order $ 312.62

16 DE81-03745A Cover, Motor Front   (Replaces: 701713) 1 Special Order $ 251.40

17 Y700601 Plate, Motor Mount 1 Appelez-nous -
18 Y715563 Connector, 1/4`` In-line 1 Appelez-nous -
19 701715 Motor, Convection 1 Appelez-nous -
20 WP12990527 Screw   (Replaces: Y708955) 1 In-Stock Immediately $ 7.15


    View Diagram in Separate Window     Print Icon   Print Part List

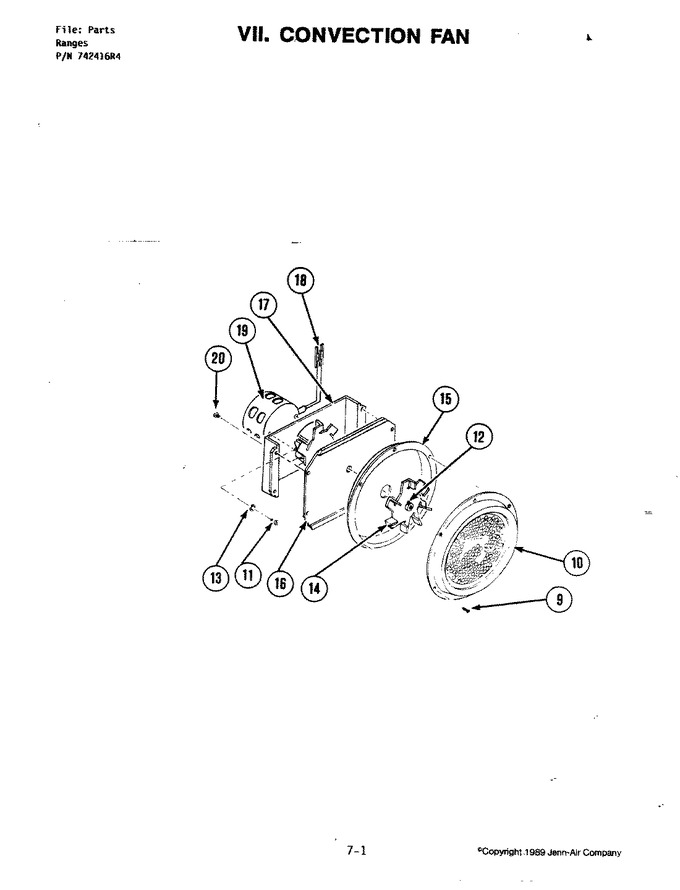

Diagram for D140-C
