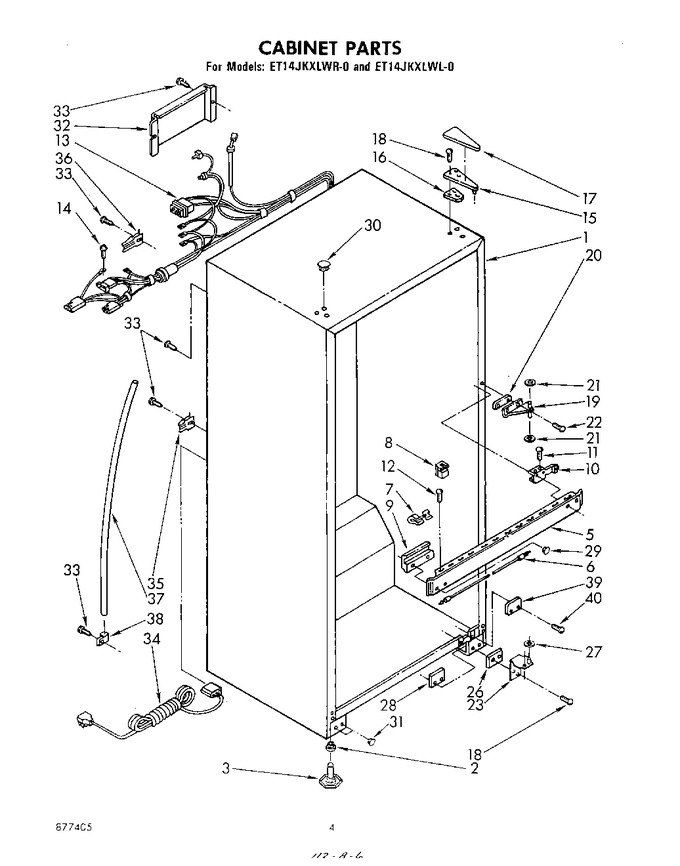

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 940113 | Screw, Grommet (4) |
|
- | |||||
| 3 | W11117769 | Leveler (2) (Replaces: 939005) |
|
Immediately | $ 16.61 | ||||
| 4 | 937216 | Roller, Front & Rear (4) |
|
- | |||||
| 5 | 935685 | Center Rail (white) |
|
- | |||||
| 5 | 935686 | Center Rail (coffee) |
|
- | |||||
| 5 | 935687 | Center Rail (harvest Gold) |
|
- | |||||
| 5 | 935688 | Center Rail (new Avocado) |
|
- | |||||
| 5 | 935689 | Center Rail (almond) |
|
- | |||||
| 6 | 938278 | Heater, Mullion |
|
- | |||||
| 7 | 534365 | Breaker, Trim Cup |
|
$ 13.35 | |||||
| 8 | 940024 | Spacer |
|
- | |||||
| 9 | 939034 | Center, Rail Shim |
|
- | |||||
| 10 | 935692 | Bracket, Center Rail |
|
- | |||||
| 11 | WP488729 | Screw, 8 X 1/2 (Replaces: 488783) |
|
Immediately | $ 7.01 | ||||
| 12 | WP488729 | Screw, 8 X 1/2 (Replaces: 487900) |
|
Immediately | $ 7.01 | ||||
| 13 | 935698 | Cabinet, Wiring Assembly |
|
- | |||||
| 14 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 9.79 | |||||
| 15 | 842039 | Hinge, Top |
|
- | |||||
| 16 | 836192 | Shim, Hinge Top |
|
- | |||||
| 17 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 17 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 17 | 989896 | Hinge Cover (harvest Gold) |
|
- | |||||
| 17 | 989897 | Hinge Cover (avocado) |
|
- | |||||
| 17 | 842010 | Hinge Cover (white) |
|
- | |||||
| 18 | 488949 | Screw (repair) |
|
- | |||||
| 18 | WP999367 | Screw, 10-32 X 3/4 (Replaces: 488948) |
|
$ 7.07 | |||||
| 19 | 836153 | Hinge, Center |
|
- | |||||
| 20 | 836155 | Shim, Hinge Center |
|
- | |||||
| 21 | WP488296 | Washer, 11/64 (Replaces: 488296) |
|
$ 6.47 | |||||
| 22 | WP999367 | Screw, 10-32 X 1/2 (Replaces: 489077) |
|
$ 7.07 | |||||
| 22 | 488949 | Screw (repair) |
|
- | |||||
| 23 | 943668 | Hinge, Bottom R.h. |
|
- | |||||
| 23 | 943670 | Hinge, Bottom L.h. |
|
- | |||||
| 26 | 935737 | Shim, Bottom |
|
- | |||||
| 27 | WP487576 | Washer, 1/16 (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 28 | 935743 | Tap Plate, Bottom |
|
- | |||||
| 29 | 940088 | Hole Plug (coffee) |
|
- | |||||
| 29 | 940086 | Hole Plug (white) |
|
- | |||||
| 29 | 940089 | Hole Plug (harvest Gold) |
|
- | |||||
| 29 | 940090 | Hole Plug (new Avocado) |
|
- | |||||
| 29 | 940087 | Hole Plug (almond) |
|
- | |||||
| 30 | 842031 | Hole Plug (white) |
|
- | |||||
| 30 | 989876 | Hole Plug (harvest Gold) |
|
- | |||||
| 30 | 989195 | Hole Plug (almond) |
|
- | |||||
| 30 | 989877 | Hole Plug (new Avocado) |
|
- | |||||
| 30 | 989875 | Hole Plug (coffee) |
|
- | |||||
| 31 | 940081 | Hole Plug (coffee) |
|
- | |||||
| 31 | 940083 | Hole Plug (new Avocado) |
|
- | |||||
| 31 | 940080 | Hole Plug (almond) |
|
- | |||||
| 31 | 656945 | Hole Plug (white) |
|
- | |||||
| 31 | 940082 | Hole Plug (harvest Gold) |
|
- | |||||
| 32 | 937358 | Cover, Wiring |
|
- | |||||
| 33 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 34 | 937360 | Cord, Service |
|
- | |||||
| 35 | 549193 | Clamp-service Cord |
|
$ 12.05 | |||||
| 36 | 937357 | Clamp |
|
- | |||||
| 37 | 8316810 | Tube, Drain (Replaces: 509640) |
|
$ 107.76 | |||||
| 38 | 488946 | Tube, Clamp |
|
$ 18.41 | |||||
| 39 | 935709 | Rail Cover Tube (harvest Gold) |
|
- | |||||
| 39 | 935707 | Rail Cover Tube (white) |
|
- | |||||
| 39 | 935708 | Rail Cover Tube (coffee) |
|
- | |||||
| 39 | 935711 | Rail Cover Tube (almond) |
|
- | |||||
| 39 | 935710 | Rail Cover Tube (avocado) |
|
- | |||||
| 40 | 488895 | Screw |
|
- |
