SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Liner


05 - Compartment Separator And Control


06 - Unit


07 - Shelf

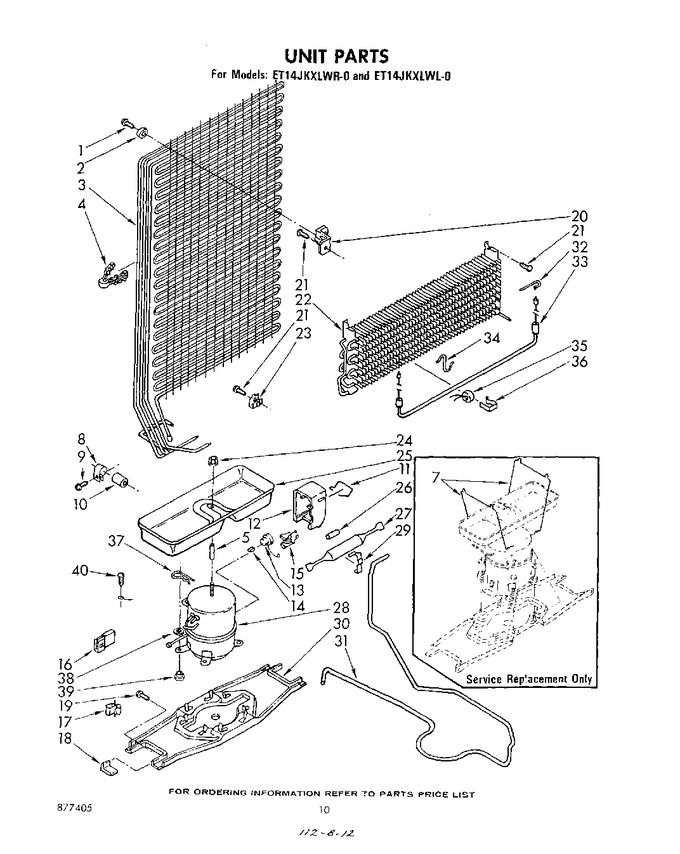

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 3/4 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	935784		Condenser & Precooler Assembly		Appelez-nous	-
4	938232		Clip, Tube (2)		Appelez-nous	-
5	938275		Spacer		Appelez-nous	-
7	482726		Retainer, Defrost Pan (2) (service Replacement Only)		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
10	938368		Dampener		Appelez-nous	-
11	531318		Relay Case Spring		Appelez-nous	-
12	549945		Relay Case		Appelez-nous	-
13	937074		Overload		Appelez-nous	-
14	547272		Bumper		Appelez-nous	-
15	989661		Relay (alternate)		Appelez-nous	-
15	989662		Relay		Appelez-nous	-
16	934326		Housing Plug		Appelez-nous	-
17	W10812038		Clip, Wire (5)   (Replaces: 939054)		Appelez-nous	-
18	937000		Support Grommet (2)		Appelez-nous	-
19	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
20	937066		Bracket, Condenser (2)		Appelez-nous	-
21	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.07
22	935789		Evaporator		Appelez-nous	-
23	935788		Clip, Condenser Mounting (2)		Appelez-nous	-
24	WP487939		Nut   (Replaces: 489087)				$ 6.95
25	935781		Tray, Evaporator		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
28	464064		Compressor (also Order 482727 Installation Kit)		Appelez-nous	-
29	547637		Drier Clamp		Appelez-nous	-
30	935779		Unit, Frame		Appelez-nous	-
31	941690		Heat Exchanger		Appelez-nous	-
32	850721		Heater Clip		Appelez-nous	-
33	935798		Heater, Defrost		Appelez-nous	-
34	851358		Support, Heater		Appelez-nous	-
35	WP4387489		Bi-metal, Defrost   (Replaces: 937071)				$ 93.42
35	WP4387489		Defrost Bimetal (alternate)   (Replaces: 937072)				$ 93.42
36	513584		Clamp		Appelez-nous	-
37	596712		Clip (4)		Appelez-nous	-
38	992950		Slotted Washer (4)		Appelez-nous	-
39	646499		Grommet (4)		Appelez-nous	-
40	978030		Valve, Access (3/4``)				$ 117.64
40	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
40	978028		Valve, Access (1/2)		Appelez-nous	-
40	978029		Valve Access (5/8``)				$ 93.85
40	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
40	303776		Screw, 8 X 1/2   (Replaces: 488879)		Appelez-nous	-
40	978026		Valve, Access (5/16``)			Immediately	$ 115.28
