SELECT A DIAGRAM
02 - Door , Lit/optional
03 - Cabinet
04 - Liner
05 - Compartment Separator And Control
06 - Unit
07 - Shelf
SELECT A DIAGRAM
New Model Search:

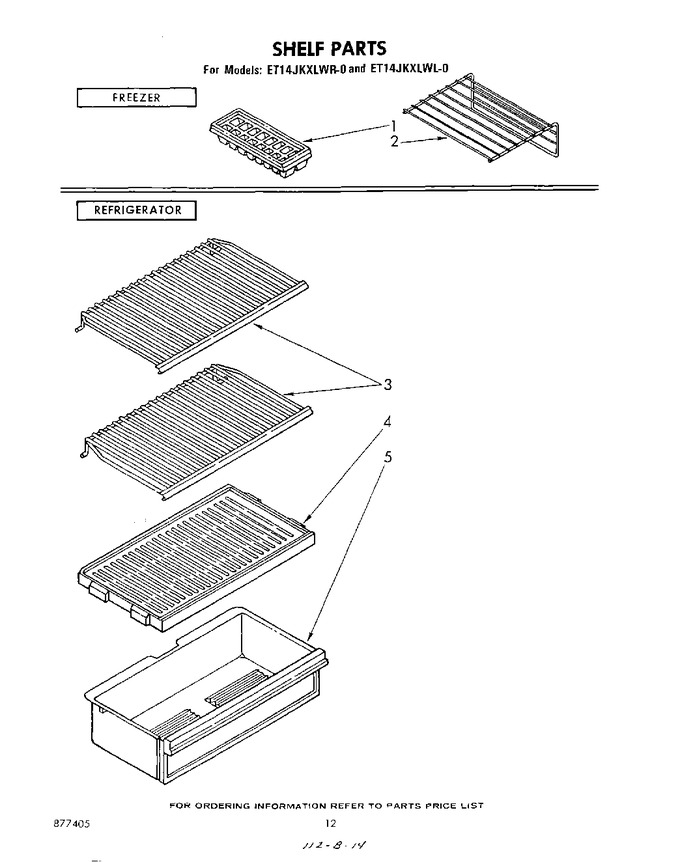

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP841180A | Ice Tray (2) (Replaces: 841180) |
|
Immediately | $ 41.00 | ||||
| 2 | 939015 | Cover, Ice Cube Tray |
|
- | |||||
| 3 | 935750 | Pullout Shelf (2) |
|
- | |||||
| 4 | 935744 | Crisper Cover |
|
- | |||||
| 5 | 935745 | Pan, Crisper |
|
- |
