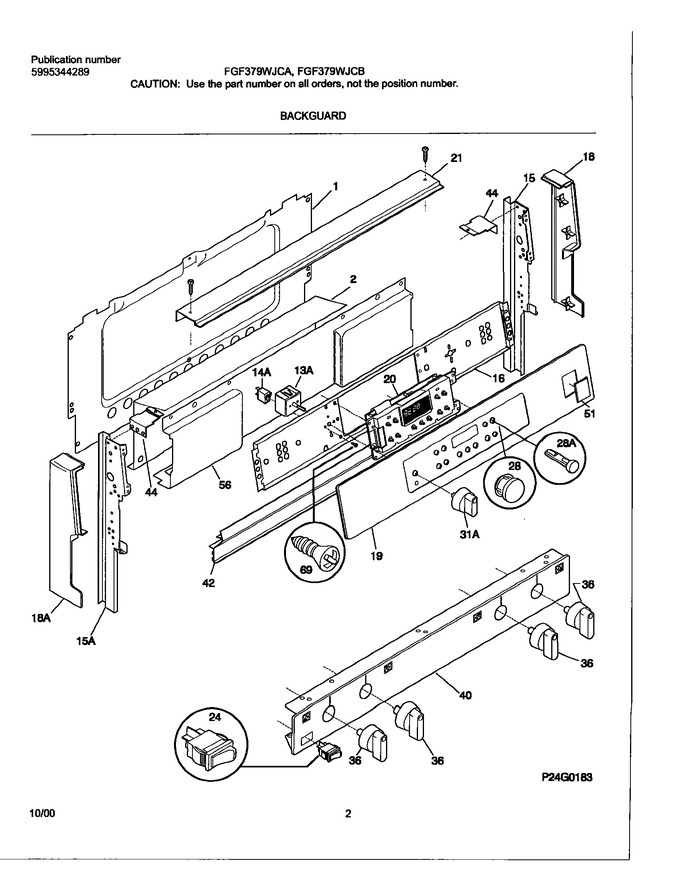

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
16	316042612		Plate,instrument		Appelez-nous	-
18	316021800		Cap-end-rh				$ 81.32
19	316028381		Panel-control, Assy, Glass, Stainless, Black		Appelez-nous	-
19	5303272836		Clip - Backguard		Appelez-nous	-
21	316039201		Trim-canopy/shield		Appelez-nous	-
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
36	316085000		Knob,top Valve ,black ,(4)				$ 77.18
40	316086824		Panel,manifold ,stainless		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316082300		Insert-nameplate		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
69	5303292005		Screw (2)		Appelez-nous	-
13A	5304508926		Switch,infinite ,drawer/zone ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
14A	3131963		Ind. Light (3)				$ 64.31
15A	316023109		Support,backguard ,lh		Appelez-nous	-
18A	316021801		Cap-end-lh				$ 94.29
28A	316080600		Push Button, Clock/timer/eoc, Black				$ 49.41
31A	316095700		Knob-warmer, Black, (2)		Appelez-nous	-
F20	316080102CP		Clock/timer, Eoc   (Replaces: 316080102)		Appelez-nous	-
F24	316083101		Switch,rocker ,black ,oven Light				$ 85.01
NI	316001435		Harness-wiring, Backguard		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316519700		Screw, Cup Pt, No.8-18 X 3/8   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
