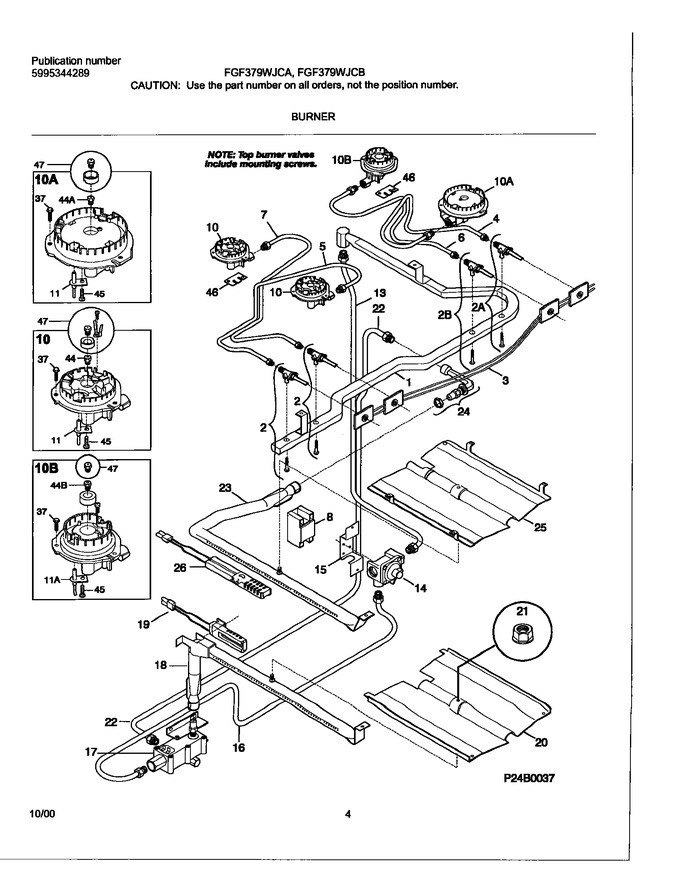

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316113801 | Manifold-pipe |
|
- | |||||
| 2 | 316048200 | Screw - Valve Mtg (8) |
|
- | |||||
| 3 | 316001826 | Harness-ignitor,3 |
|
$ 234.31 | |||||
| 8 | 5303289034 | Ferrule-air |
|
$ 188.84 | |||||
| 11 | 316011200 | Electrode & Bracket |
|
Immediately | $ 38.68 | ||||
| 14 | 316021104 | Screw, Regulator/brkt, Hex, 8, 18 X 3/8, Nick, 3 (non-i |
|
$ 7.79 | |||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 19 | 5304509706 | Ignitor-oven (Replaces: 316119301) |
|
Immediately | $ 189.59 | ||||
| 20 | 3131284 | Baffle-oven |
|
$ 155.77 | |||||
| 21 | 154079601 | Hex-nut 10-24 (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 25 | 5303210379 | Baffle, Broil |
|
$ 175.88 | |||||
| 37 | 316069301 | Screw,burner Mtg |
|
$ 2.99 | |||||
| 44 | 5303210090 | Orifice |
|
$ 54.18 | |||||
| 45 | 316011100 | Screw - Igniter Mtg, Self-tapping |
|
$ 3.41 | |||||
| 46 | 316074700 | Plate-burner Tube |
|
- | |||||
| 10A | 5303935075 | Burner Assy,sealed ,large ,11k |
|
- | |||||
| 10B | 316010605 | Burner Assy,sealed ,small ,5k |
|
- | |||||
| 2B | 316127507 | Valve,top Burner ,5k |
|
$ 71.14 | |||||
| F10 | 5303935025 | Burner Assembly - Top, Sealed (4) Includes 11, 37, 44,45 |
|
- | |||||
| F13 | 316065005 | Tube, Aluminum, Rfltr To Manf, With Fittings |
|
$ 91.51 | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| F16 | 316065003 | Tube-valve To Rgltr, 3/8 |
|
$ 126.42 | |||||
| F17 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| F18 | 3131290 | Burner-oven |
|
- | |||||
| F2 | 316127500 | Valve,top Burner ,9k |
|
- | |||||
| F22 | 316065002 | Tube-valve To Mixer |
|
$ 80.90 | |||||
| F23 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| F24 | 316070400 | Elbow`mixer |
|
- | |||||
| F26 | 5303935068 | Ignitor,broiler (Replaces: 316119302) |
|
$ 166.55 | |||||
| F2A | 316127502 | Valve,top Burner ,large ,11k |
|
$ 107.47 | |||||
| F4 | 316059612 | Tube-burner, Red, Rf |
|
$ 88.25 | |||||
| F47 | 316039616 | Lp Conversion Kit,orange |
|
- | |||||
| F5 | 316059613 | Tube-burner, Green, Lf |
|
$ 87.16 | |||||
| F6 | 316059614 | Tube-burner, Nat., Rr |
|
$ 125.06 | |||||
| F7 | 316059615 | Tube-burner, Black, Lr |
|
$ 106.32 | |||||
| F8 | 5304505695 | Module,spark (Replaces: 316135701) |
|
Immediately | $ 68.16 | ||||
| NI | 5303271648 | Burner Box, Wafer Hd Sq Dr , 8-18ab X 1/2 |
|
Immediately | $ 13.46 |
