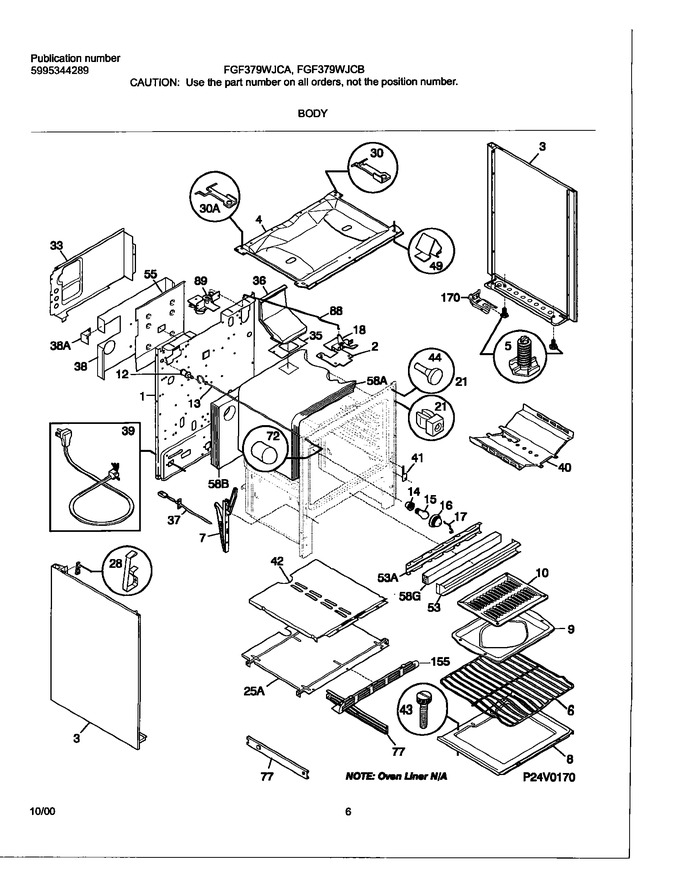

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029416		Back-main Long Black Dipped,1		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	316081039		Bodyside-panel Lh, Textured		Appelez-nous	-
3	316081038		Bodyside-panel Rh, Textured		Appelez-nous	-
4	316011918		Burner Box,4 ,solid		Appelez-nous	-
5	316129200		Leg-leveling (plastic) W/stops				$ 10.92
6	5304531722		Rack,oven   (Replaces: 316083800)			Immediately	$ 51.05
7	316007005		Hinge-oven Door, (2)		Appelez-nous	-
8	5303212540		Bottom - Open		Appelez-nous	-
8	316064600		Support-oven Bottom (non-illustrated)				$ 18.95
9	316081900		Insert-broiler Pan				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316026800		Rod-light Switch/door				$ 36.86
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	3014099		Spaceer-bodyside				$ 3.62
28	3011813		Clif-wire				$ 14.79
30	316059200		Bracket-main Top, Rh		Appelez-nous	-
33	5303288495		655f Shield Rear Wall,33		Appelez-nous	-
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	316133002		Flue		Appelez-nous	-
38	316051700		Shield-heat		Appelez-nous	-
40	3200836		Shield-heat Baffle		Appelez-nous	-
40	5303288570		Screw, Heat Shield, Hd Shldr Sqdr, 8, 18 X 1/2 (non-ill		Appelez-nous	-
41	3131570		Cover-hinge (2)				$ 7.35
42	5303288578		Shield-bake Burner				$ 156.19
43	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
49	3205821		Clip-retainer (2)   (Replaces: 3051124)			Immediately	$ 35.44
53	5303288579		Shield,main Front		Appelez-nous	-
55	316107800		Shield,flue		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
77	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
25A	316092300		Shield,warmer Drawer ,upper		Appelez-nous	-
30A	316059201		Bracket-main Top, Lh		Appelez-nous	-
38A	316097100		Insulator, Shield		Appelez-nous	-
53A	08067992		Shield - Insulation, Galv Steel		Appelez-nous	-
58A	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
58G	08067973		Insul-front Frame (non-illustrated)				$ 51.74
F12	316027701		Switch-oven Light, Door Frame		Appelez-nous	-
F18	316036300		Latch-door		Appelez-nous	-
F37	5304497424		Probe-oven Temp   (Replaces: 316111202)			Immediately	$ 38.32
F39	5304534000		Cord, Power   (Replaces: 3131425)			Immediately	$ 33.37
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, No.8-18 X 3/8   (Replaces: 316021108)				$ 10.02
