Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

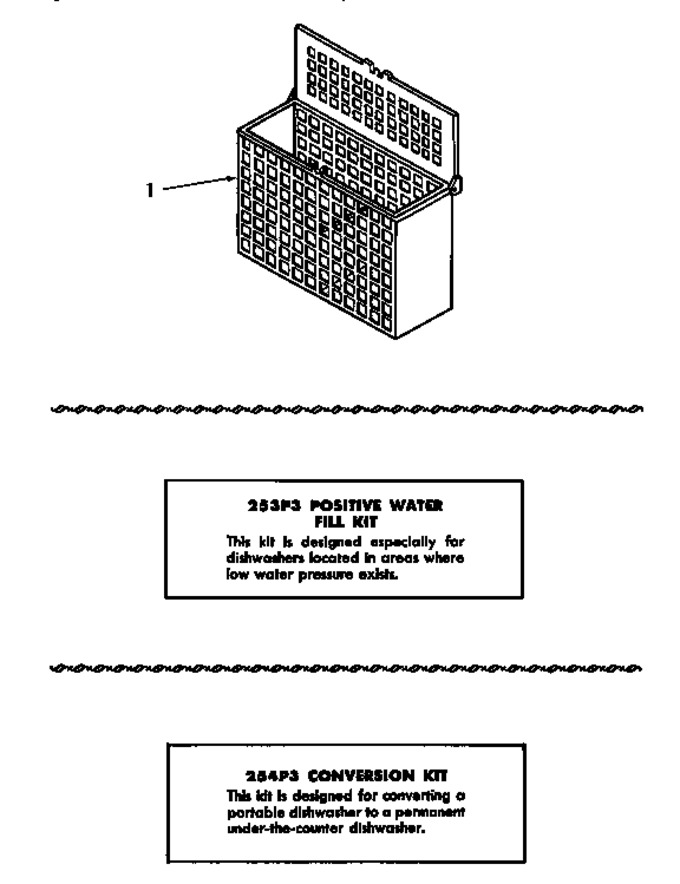

1	M110262		Small Items Basket		Appelez-nous	-
NI	253P3		Kit,positive Fill Xreplace		Appelez-nous	-
NI	254P3		Conversion Kit		Appelez-nous	-
