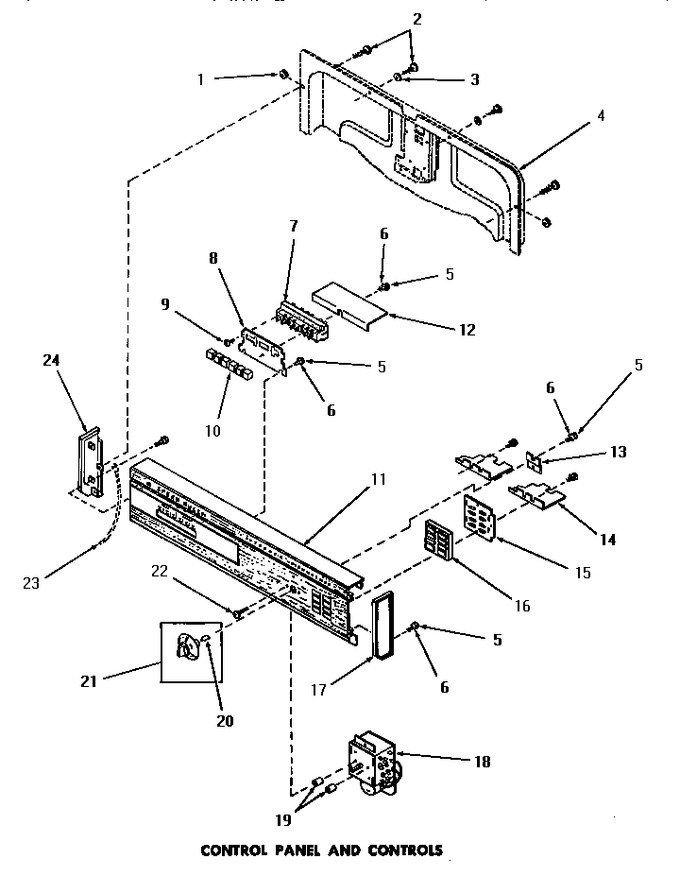

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M110134 | Grommet |
|
- | |||||
| 2 | 65022 | Screw,phillips Head |
|
$ 83.47 | |||||
| 3 | 21147 | Washer,11/64idx1/16odx |
|
- | |||||
| 4 | Y00000000 | See Note Door Panel, Inner |
|
- | |||||
| 5 | Sub. To D510147P | Screw,8b-18 X 1/2 Rd H (Replaces: 51778) |
|
- | |||||
| 6 | Y20278 | Lockwasher |
|
- | |||||
| 7 | M110135 | Switch,selector Xreplace |
|
- | |||||
| 8 | M110129 | Mounting Bracket |
|
- | |||||
| 9 | Sub. To D510151W | Screw, 6b-20x5/16 (Replaces: 51782) |
|
- | |||||
| 10 | M110126 | Button,push Xreplace |
|
- | |||||
| 11 | M110000 | Control Panel |
|
- | |||||
| 12 | M110128 | Switch Guard |
|
- | |||||
| 13 | M110131 | Bracket |
|
- | |||||
| 14 | M110127 | Timer Guard |
|
- | |||||
| 15 | M110130 | Board,circuit Xreplace |
|
- | |||||
| 16 | M110132 | Lens |
|
- | |||||
| 17 | M110123 | End Cap, Right |
|
- | |||||
| 18 | M110124 | Timer Xreplace |
|
- | |||||
| 19 | M110136 | Spacer |
|
- | |||||
| 20 | M110202 | Clip Xreplace |
|
- | |||||
| 21 | M110121 | Knob,timer Xreplace |
|
- | |||||
| 22 | M110146 | Screw And Lockwasher |
|
- | |||||
| 23 | Y00000000 | See Note Ground Wire |
|
- | |||||
| 24 | M110122 | End Cap, Left |
|
- | |||||
| NOTE: | Tub Inc 20376 Nut(2), 81108 O-ring(4), 81120 Screw(2), 90690 Washer(2), 91163 Screw(2), M110015 Gskt, M110016 Gskt, M110045 Gskt, M110059 Gskt Clip(2), M11014 |
|
- |
