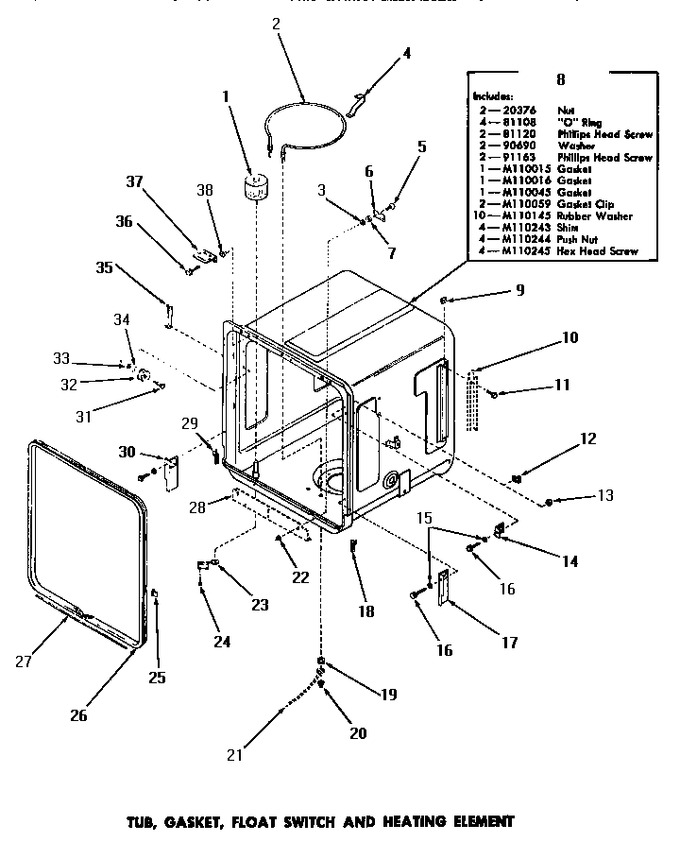

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M110048 | Float Xreplace |
|
- | |||||
| 2 | M110027 | Element,heater Xreplace |
|
- | |||||
| 3 | M110145 | Washer,rubber Xreplace |
|
- | |||||
| 4 | M110043 | Clamp,element Xreplace |
|
- | |||||
| 5 | 81120 | Phillips Head Screw |
|
- | |||||
| 6 | M110059 | Clip,gasket Xreplace |
|
- | |||||
| 7 | 90690 | Washer |
|
- | |||||
| 8 | M110047 | Tub |
|
- | |||||
| 9 | Y81061 | Speed Nut |
|
- | |||||
| 10 | Y00000000 | See Note Side Channel |
|
- | |||||
| 11 | 02422 | Screw,1/4-20 X 1/2 Hex |
|
- | |||||
| 13 | 03673 | Nut |
|
- | |||||
| 14 | M110055 | Door Guide |
|
- | |||||
| 15 | 21643 | Washer,13/64idx3/8odx1 |
|
- | |||||
| 16 | 51924 | Screw,10-24 X 1/2 Hex |
|
- | |||||
| 17 | M110240 | Door Guide, Right |
|
- | |||||
| 18 | M110053 | Guide,r.h. Xreplace |
|
- | |||||
| 19 | M110050 | Grommet Xreplace |
|
- | |||||
| 20 | M110051 | Nut,element Xreplace |
|
- | |||||
| 21 | Y00000000 | See Note Ground Wire |
|
- | |||||
| 22 | 20376 | No Longer Available |
|
$ 161.60 | |||||
| 23 | M110049 | Switch,float Xreplace |
|
- | |||||
| 24 | M110147 | Hex Head Screw |
|
- | |||||
| 25 | M110054 | Fastener,gasket Xreplace |
|
- | |||||
| 26 | M110045 | Gasket,include M110046xreplace |
|
- | |||||
| 27 | M110046 | Wire,gasket Xreplace |
|
- | |||||
| 28 | Y00000000 | See Note Hinge Weldment |
|
- | |||||
| 29 | M110052 | Guide,l.h. Xreplace |
|
- | |||||
| 30 | M110239 | Door Guide, Left |
|
- | |||||
| 31 | M110056 | Screw,shoulder Xreplace |
|
- | |||||
| 32 | M110057 | Roller Xreplace |
|
- | |||||
| 33 | M110145 | Washer,rubber Xreplace |
|
- | |||||
| 34 | 90690 | Washer |
|
- | |||||
| 35 | M110058 | Plate,tapping Xreplace |
|
- | |||||
| 36 | M110245 | Hex Head Screw |
|
- | |||||
| 37 | M110060 | Top Hold-down Bracket |
|
- | |||||
| 38 | M110244 | Push Nut |
|
- |
