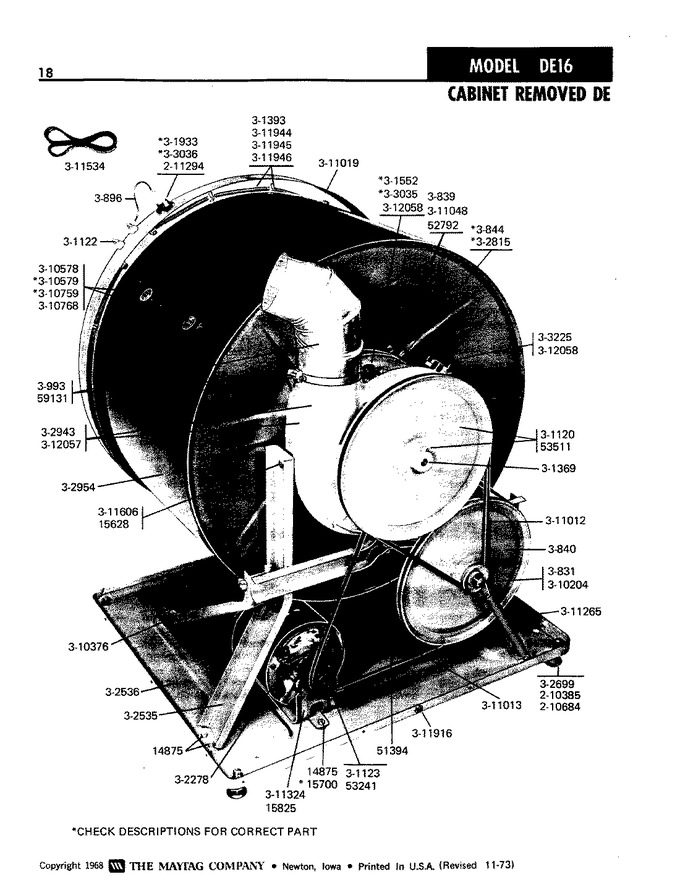

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300831 | Shaft And Slide | 00 |
|
- | ||||
| 2 | 300839 | Seal | 00 |
|
- | ||||
| 3 | 300840 | Reduction Pulley | 00 |
|
- | ||||
| 4 | Y300844 | Exhaust Housing | 00 |
|
- | ||||
| 5 | Y300896 | No.2 Wire | 00 |
|
- | ||||
| 6 | W10311986 | Clamp (Replaces: 300993) | 00 |
|
Immediately | $ 169.33 | |||
| 7 | Y301120 | Drum Pulley | 00 |
|
- | ||||
| 8 | Y304596 | Terminal Post (Replaces: 301122) | 00 |
|
Immediately | $ 22.97 | |||
| 9 | 301123 | Motor Pulley | 00 |
|
$ 1.02 | ||||
| 10 | 301369 | Shaft With Spider | 00 |
|
- | ||||
| 11 | 301393 | Insulator | 00 |
|
- | ||||
| 12 | 301552 | Regulating Thermostat | 00 |
|
- | ||||
| 13 | Y301933 | High Limit Thermostat | 00 |
|
- | ||||
| 14 | Y302278 | Motor | 00 |
|
- | ||||
| 15 | 302535 | Support | 00 |
|
- | ||||
| 16 | 302536 | Base | 00 |
|
- | ||||
| 17 | 22003428 | Leg, Adjustable (w/nut) (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 18 | Y302815 | Blower Housing With Bearing | 00 |
|
- | ||||
| 19 | 302943 | Cover With Lint Seal-blower | 00 |
|
- | ||||
| 20 | 302954 | Drum W/felt - Porcelain | 00 |
|
- | ||||
| 21 | WP694674 | Regulating Thermostat (Replaces: 303035) | 00 |
|
Immediately | $ 45.46 | |||
| 22 | Y303036 | High Limit Thermostat | 00 |
|
- | ||||
| 23 | Y303225 | Thermostat, Permanent Press | 00 |
|
$ 46.70 | ||||
| 24 | 310204 | Snap Ring | 00 |
|
- | ||||
| 25 | 310262 | Washer | 00 |
|
- | ||||
| 26 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 27 | 310578 | Washer | 00 |
|
- | ||||
| 28 | 310579 | Screw, No.10-24 X 11/16 Inch | 00 |
|
- | ||||
| 29 | Y310759 | Screw | 00 |
|
$ 5.75 | ||||
| 30 | 310768 | Washer | 00 |
|
- | ||||
| 31 | 310933 | Fastener | 00 |
|
- | ||||
| 32 | Y311012 | Drive Belt | 00 |
|
$ 32.09 | ||||
| 33 | Y311013 | Motor Belt | 00 |
|
$ 28.00 | ||||
| 34 | 311019 | Drum Cover | 00 |
|
- | ||||
| 35 | 311048 | Washer, Aluminum | 00 |
|
- | ||||
| 36 | 311265 | Spring | 00 |
|
- | ||||
| 37 | 311324 | Motor Base | 00 |
|
- | ||||
| 38 | 311534 | Felt Seal | 00 |
|
- | ||||
| 39 | 311606 | Lock Washer | 00 |
|
- | ||||
| 40 | W10850756 | Ground Lug (Replaces: Y311916) | 00 |
|
$ 6.98 | ||||
| 41 | 311944 | Element - 230v | 00 |
|
- | ||||
| 42 | Y311945 | Heater Wire 208 Volt | 00 |
|
- | ||||
| 43 | Y311946 | Heater Wire 240 Volt | 00 |
|
$ 55.28 | ||||
| 44 | WPW10139210 | Screw,spacer (Replaces: Y312057) | 00 |
|
$ 6.75 | ||||
| 45 | WP12990527 | Screw, No.6 X 5/16 Inch (Replaces: Y312058) | 00 |
|
Immediately | $ 7.15 | |||
| 46 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 47 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 48 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 49 | WPY014874 | Screw (Replaces: Y014874) | 00 |
|
$ 6.98 | ||||
| 50 | 014875 | Cap Screw, No.14 X 1/2 | 00 |
|
- | ||||
| 51 | 015628 | Bolt, 5/16 X 3/4 Hex | 00 |
|
- | ||||
| 52 | 015700 | Cap Screw, 1/4-20 X 1/2 | 00 |
|
- | ||||
| 53 | WPY015825 | Clip, Motor (Replaces: Y015825) | 00 |
|
$ 21.03 | ||||
| 54 | 051394 | Bolt, 5/16 X 2-1/8 | 00 |
|
- | ||||
| 55 | 052792 | Screw, 1 1/4-20 X 5/16 | 00 |
|
- | ||||
| 56 | Y053241 | Set Screw, Pulley | 00 |
|
- | ||||
| 57 | Y053511 | Set Screw | 00 |
|
- | ||||
| 58 | 054865 | Lock Washer, 5/16 X 3/32 | 00 |
|
- | ||||
| 59 | Y059131 | Elbow, Venting (4``) | 00 |
|
- |
