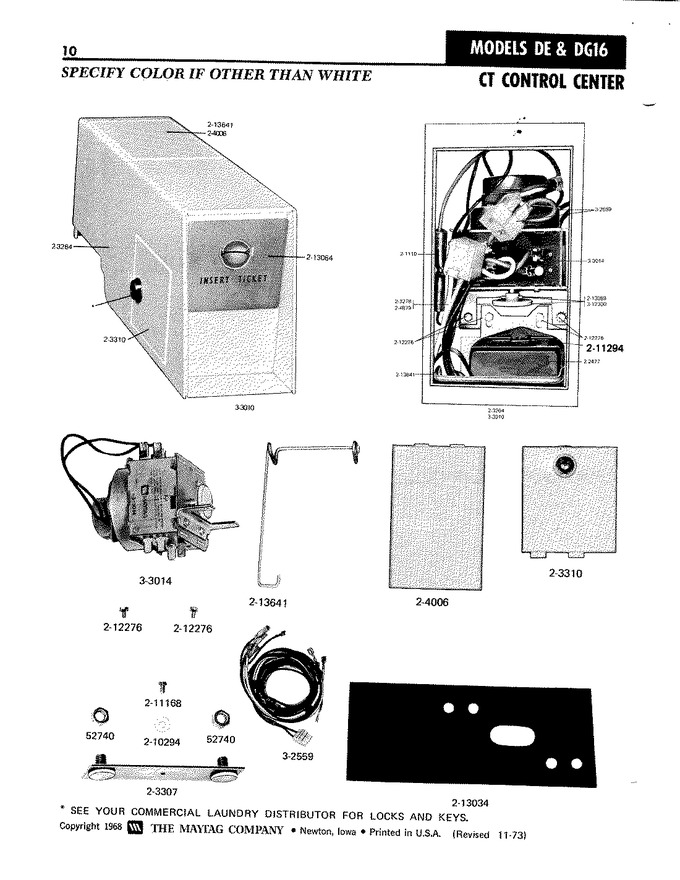

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y302559 | Harness For Timer | 00 |
|
- | ||||
| 2 | 303010 | Control Center Complete | 00 |
|
- | ||||
| 3 | 303014 | Timer With Knob And Pin | 00 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 5 | WP75614 | Wire Connector (Replaces: 201110) | 00 |
|
$ 44.41 | ||||
| 6 | 202477 | Electronic Control | 00 |
|
- | ||||
| 7 | 203188 | Door, Access (wht) | 00 |
|
- | ||||
| 8 | 203264 | Outer Case-white | 00 |
|
- | ||||
| 9 | 203278 | Harness For Ticket Control | 00 |
|
- | ||||
| 10 | 203307 | Mtg. Strap----na | 00 |
|
- | ||||
| 11 | 203310 | Access Door-white | 00 |
|
- | ||||
| 12 | 204006 | Access Door-white | 00 |
|
- | ||||
| 13 | 204879 | Harness For Ticket Control | 00 |
|
- | ||||
| 14 | 210294 | Washer | 00 |
|
- | ||||
| 15 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 16 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 17 | 212457 | Pin Recepticle | 00 |
|
- | ||||
| 18 | WP488234 | Screw, No.8-32 X 1/4 Inch (Replaces: 212519) | 00 |
|
$ 6.07 | ||||
| 19 | 213034 | Gasket Under Control Center | 00 |
|
- | ||||
| 20 | 213064 | Front Plate F/ticket Contro | 00 |
|
- | ||||
| 21 | 213070 | Bracket For Ticket Assembly | 00 |
|
- | ||||
| 22 | 213641 | Latch For Access Door | 00 |
|
- | ||||
| 23 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 |
