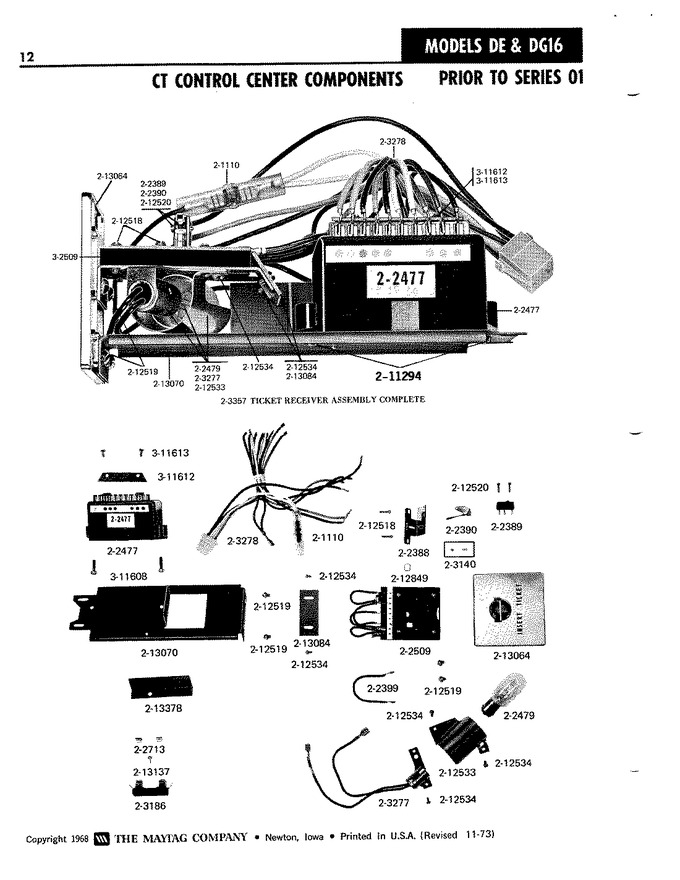

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 211294) | 01 |
|
Immediately | $ 7.04 | |||
| 2 | 311612 | Cover For Circuit Board | 01 |
|
- | ||||
| 3 | 311613 | Screw - Circuit Board Cover | 01 |
|
- | ||||
| 4 | WP75614 | Wire Connector (Replaces: 201110) | 01 |
|
$ 44.41 | ||||
| 5 | 202388 | Cam Plate Assembly | 01 |
|
- | ||||
| 6 | 202389 | Switch For Ticket Control | 01 |
|
- | ||||
| 7 | 202390 | Switch Actuator | 01 |
|
- | ||||
| 8 | 202399 | Jumper Wire - Black | 01 |
|
- | ||||
| 9 | 202477 | Electronic Control | 01 |
|
- | ||||
| 10 | 202479 | Lamp For Ticket Control | 01 |
|
- | ||||
| 11 | 202509 | Ticket Control | 01 |
|
- | ||||
| 12 | WP22001555 | Fuse (Replaces: 202713) | 01 |
|
Immediately | $ 27.33 | |||
| 13 | 203140 | Contact Ball Kit | 01 |
|
Immediately | $ 25.88 | |||
| 14 | 203186 | Fuse Block With Fuse | 01 |
|
- | ||||
| 15 | 203277 | Lamp Socket With Bracket | 01 |
|
- | ||||
| 16 | 203278 | Harness For Ticket Control | 01 |
|
- | ||||
| 17 | 203357 | Ticket Receiver Assembly | 01 |
|
- | ||||
| 18 | 212452 | Circuit Board | 01 |
|
- | ||||
| 19 | 212457 | Pin Recepticle | 01 |
|
- | ||||
| 20 | 212518 | Sems Screw, No.4-40 X 1/2 Inc | 01 |
|
- | ||||
| 21 | WP488234 | Screw, No.8-32 X 1/4 Inch (Replaces: 212519) | 01 |
|
$ 6.07 | ||||
| 22 | 212520 | Screw-micro Switch | 01 |
|
$ 10.77 | ||||
| 23 | 212533 | Shield For Heat Lamp | 01 |
|
$ 11.78 | ||||
| 24 | 212534 | Screw, Shield To Control | 01 |
|
- | ||||
| 25 | 212849 | Roller For Cam | 01 |
|
- | ||||
| 26 | 213064 | Front Plate F/ticket Contro | 01 |
|
- | ||||
| 27 | 213070 | Bracket For Ticket Assembly | 01 |
|
- | ||||
| 28 | 213084 | Ticket Deflector | 01 |
|
- | ||||
| 29 | 213137 | Screw, No.6 X 1/4 Inch | 01 |
|
- | ||||
| 30 | 213378 | Shield | 01 |
|
- |
