SELECT A DIAGRAM
New Model Search:

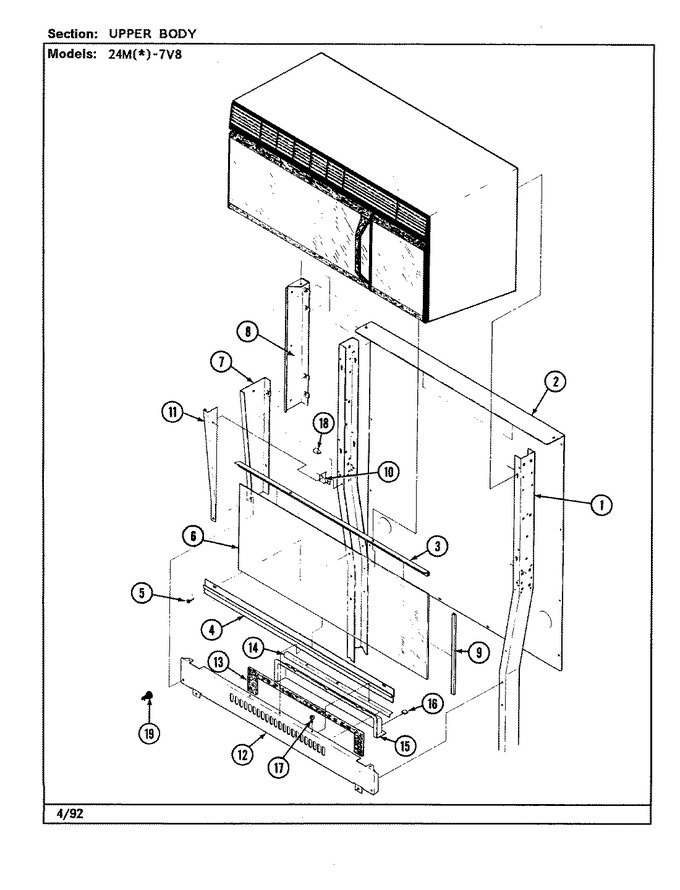

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3818F046-51 | Channel, Oven Support | 01 |
|
- | ||||
| 2 | 4002F054-80 | Cover, Back Wire | 01 |
|
- | ||||
| 3 | 7706P165-60 | Extrusion, Glass Top | 01 |
|
- | ||||
| 4 | 7706P164-60 | Extrusion, Glass Bot | 01 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 6 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 6 | 7902P147-60 | Glass, Backsplash | 01 |
|
- | ||||
| 7 | 2618F076-32 | Panel, Side Upper (left) | 01 |
|
- | ||||
| 7 | 2618F077-32 | Panel, Side Upper (right) | 01 |
|
- | ||||
| 8 | 2618F044-32 | Panel, Side Upper Top (rt) | 01 |
|
- | ||||
| 8 | 2618F043-32 | Panel, Side Upper Top (lt) | 01 |
|
- | ||||
| 8 | 7101P075-60 | Screw | 01 |
|
- | ||||
| 9 | 7720P083-60 | Trim, Glass Retainer | 01 |
|
- | ||||
| 10 | 3804F044-45 | Bracket, Side Panel (rt) | 01 |
|
- | ||||
| 10 | 3804F043-45 | Bracket, Side Panel (lt) | 01 |
|
- | ||||
| 11 | 7720P140-60 | Trim, Side Panel (left) | 01 |
|
- | ||||
| 11 | 7720P141-60 | Trim, Side Panel (right) | 01 |
|
- | ||||
| 12 | 2620W055-84 | Panel, Backguard Lower | 01 |
|
- | ||||
| 12 | 2620W055-81 | Panel, Backguard Lower | 01 |
|
- | ||||
| 13 | 7201P026-60 | Gasket, Flue Box | 01 |
|
- | ||||
| 14 | 3820F008-61 | Angle-retainer, Flue Box | 01 |
|
- | ||||
| 15 | 4006F096-19 | Box, Flue | 01 |
|
- | ||||
| 16 | 7104P001-60 | Fastener | 01 |
|
- | ||||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 18 | 7105P003-60 | Spacer, Upper Side | 01 |
|
- | ||||
| 19 | 7105P002-60 | Support, Main Top | 01 |
|
- |
