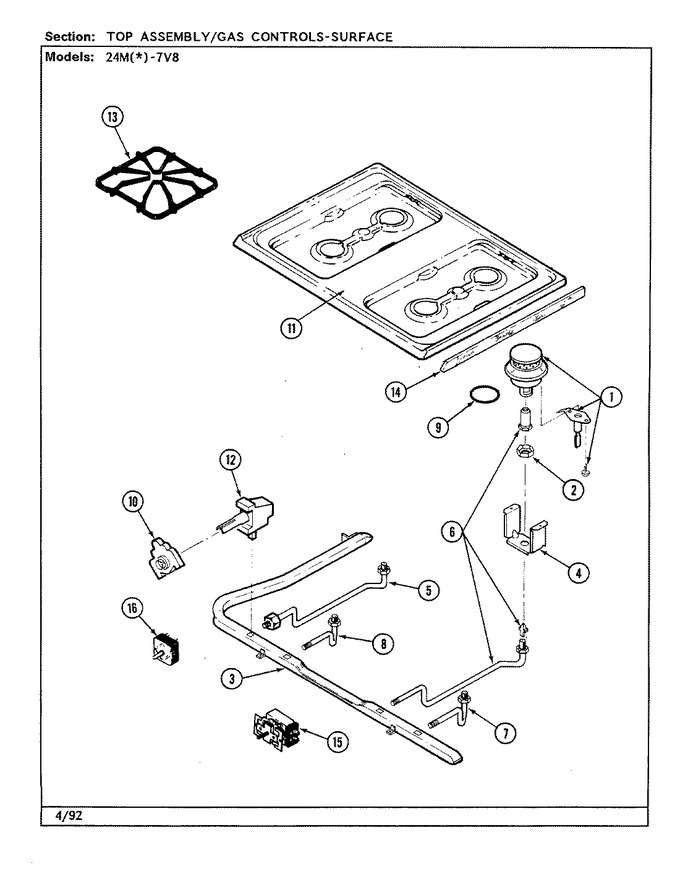

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74004005 | Screw (Replaces: 7118P010-60) | 01 |
|
$ 6.95 | ||||
| 1 | WP3412D024-26 | Burner, Sealed (Replaces: 3412D015-14) | 01 |
|
Immediately | $ 90.27 | |||
| 1 | WP3412D024-26 | Burner, Sealed (Replaces: 3412D017-26) | 06 |
|
Immediately | $ 90.27 | |||
| 1 | 5111A360-60 | Wire, Igniter | 01 |
|
$ 5.70 | ||||
| 1 | 5111A361-60 | Wire Igniter | 01 |
|
- | ||||
| 1 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Burner Assembly) |
|
- | |||||
| 1 | 7432P072-60 | Igniter Top Burner |
|
- | |||||
| 2 | 7103P119-60 | Palnut | 01 |
|
- | ||||
| 3 | 7513P104-60 | Pipe, Manifold | 01 |
|
- | ||||
| 4 | 3807F378-45 | Support, Orifice Fitting | 01 |
|
- | ||||
| 5 | 7507P105-60 | Fitting, Orifice (rear)---na | 01 |
|
- | ||||
| 6 | 7507P105-60 | Fitting, Orifice (rear)---na | 01 |
|
- | ||||
| 7 | 7507P110-60 | Fitting, Orifice (frt) | 01 |
|
- | ||||
| 8 | 7507P110-60 | Fitting, Orifice (frt) | 01 |
|
- | ||||
| 9 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 01 |
|
Immediately | $ 92.69 | |||
| 10 | WP7403P287-60 | Switch, Igniter (Replaces: 7403P287-60) | 01 |
|
$ 130.75 | ||||
| 11 | 2001F080-81 | Top, Main |
|
- | |||||
| 12 | 7502P220-60 | Valve, Top Burner | 01 |
|
- | ||||
| 12 | 7101P296-60 | Screw | 01 |
|
- | ||||
| 13 | 2003W023-26 | Grate (dk Gry) | 06 |
|
- | ||||
| 13 | 2003W023-14 | Grate (gry) | 01-05 |
|
- | ||||
| 14 | 7746P025-60 | Trim, Main Top (left) | 01 |
|
- | ||||
| 14 | 7746P026-60 | Trim, Main Top (right) | 01 |
|
- | ||||
| 14 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 14 | W10080180 | Nut (Replaces: 7103P034-60) | 01 |
|
$ 12.13 | ||||
| 15 | 7404P064-60 | Thermostat | 01 |
|
- | ||||
| 16 | 7403P092-60 | Switch, Selector | 01 |
|
- |
