Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3601W184-19 Baffle, Bake 01 Appelez-nous -
2 3601F181-45 Baffle, Oven Burner 01 Appelez-nous -
3 3403D027-45 Burner, Oven 01 Appelez-nous -
4 3403D028-45 Burner, Broil 01 Appelez-nous -
5 12400035 Igniter, Oven   (Replaces: 7432P067-60) 01 In-Stock Immediately $ 60.44

5 4005F363-45 Cover Ignitor Wire 01 Appelez-nous -
6 7103P030-60 Nut, Wing 01 Special Order $ 6.37

7 7506P117-60 Tubing Regulator 01 Appelez-nous -
8 7506P101-60 Tube, Manifold Feed----na 01 Appelez-nous -
9 3414F057-44 Tubing, 3/8 X 20-3/4 01 Appelez-nous -
10 7501P095-60 Valve, Broil & Bake - Nat 01 Appelez-nous -
11 3801F270-45 Bracket, Spark Module 01 Appelez-nous -
11 12001596 Module, Spark   (Replaces: 7431P021-60) 01 In-Stock Immediately $ 85.93

12 WP4159193 Screw (10-24x5/16-ni)   (Replaces: 7101P282-60) 01 Special Order $ 4.29

13 1555251 Nut, Loxit (3/8``) 01 Appelez-nous -
14 7510P048-60 Regulator, Pressure 01 Appelez-nous -
15 3801F191-45 Bracket, Regulator Mtg 01 Appelez-nous -
16 7507P067-60 Fitting, Broil Burner 01 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

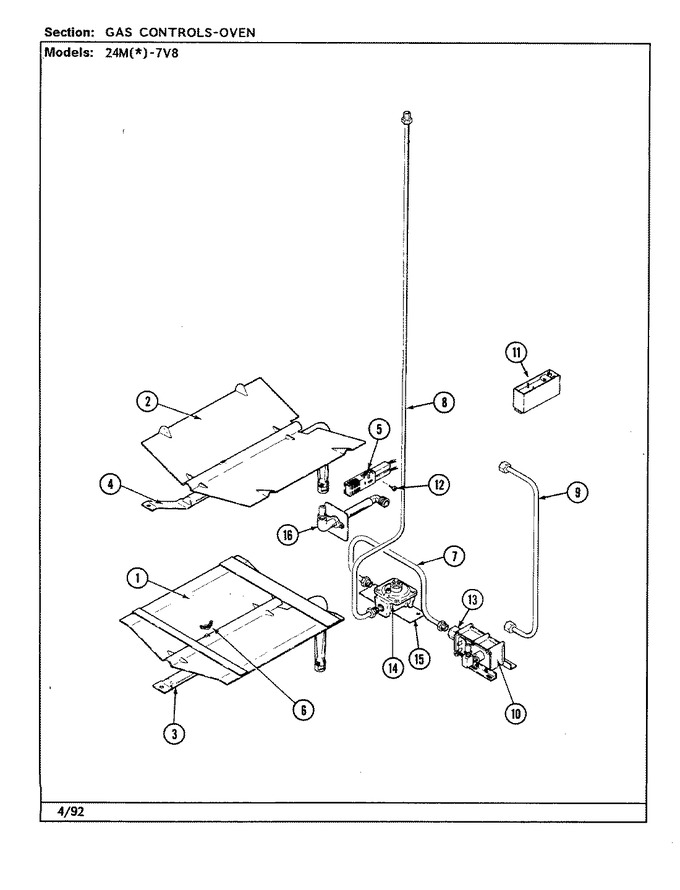

Diagram for 24MN-7CKXWV8
