SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner

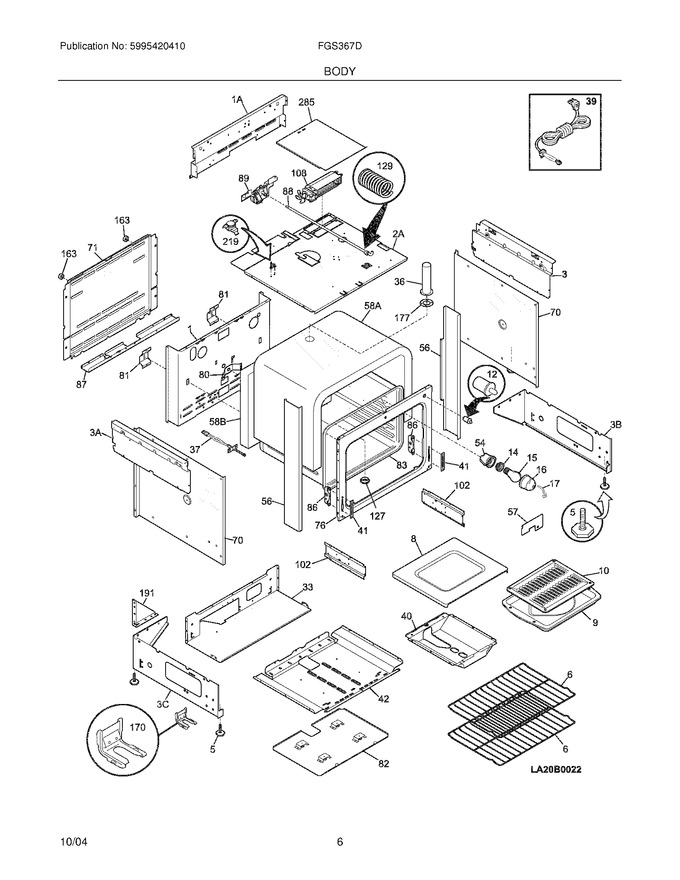

07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066415		Panel,main Back		Appelez-nous	-
3	318225200		Panel,bodyside ,upper Rh		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318025314		Rack,oven   (Replaces: 318025308)			Immediately	$ 148.70
8	318121402		Panel,oven Bottom		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
33	318265400		Panel,valve Mtg.		Appelez-nous	-
36	318266400		Flue		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
40	318265000		Box,bake Burner		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
42	318265200		Shield,insulation ,lower		Appelez-nous	-
54	318222400		Housing,oven Light				$ 58.22
56	318225902		Trim,oven ,black		Appelez-nous	-
57	318268300		Cover,burner Opening		Appelez-nous	-
70	318194400		Shield,insulation				$ 33.03
71	318295800		Panel,wiring Cover ,rear		Appelez-nous	-
76	318225303		Front,oven		Appelez-nous	-
80	318283800		Plate,oven Mtg		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
82	318272600		Panel,insualtion ,& Support		Appelez-nous	-
83	318262401		Liner,oven Assy		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	318264100		Shield,electric Conn.		Appelez-nous	-
88	318250210		Rod,latch ,w/bushing		Appelez-nous	-
102	5303311142		Support-oven Front		Appelez-nous	-
127	318269400		Adaptor Assy,flue ,black		Appelez-nous	-
129	5303311164		Spring				$ 18.95
163	318531702		Spacer   (Replaces: 318014110)				$ 9.93
170	5304405244		Anti-tip & Accessories				$ 44.73
177	318266700		Gasket,vent		Appelez-nous	-
191	5303304030		Bracket,angle ,corner		Appelez-nous	-
285	318236200		Shield,hidden Wires		Appelez-nous	-
1A	318225101		Panel,main Back ,upper		Appelez-nous	-
2A	318227601		Shield,oven Top		Appelez-nous	-
3A	318225201		Panel,bodyside ,upper Lh		Appelez-nous	-
3B	318160021		Panel,lower Side ,rh		Appelez-nous	-
3C	318160013		Panel,lower Side ,lh		Appelez-nous	-
58A	318268000		Insulation,oven Wrapper		Appelez-nous	-
58B	318268100		Insulation,oven Back		Appelez-nous	-
F108	318073028		Motor,blower   (Replaces: 318073016)			Immediately	$ 271.69
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 44.23
F219	318003606		Thermostat,safety				$ 105.19
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F89	318095957		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095937)			Immediately	$ 127.75
NI	318120711		Switch				$ 87.68
NI	5304436864		Washer,flat				$ 2.84
NI	318167300		Clip,rod				$ 2.84
NI	5304400428		Screw,shoulder Head ,8-15a X 0.125				$ 5.40
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318268700		Wiring Harness,main		Appelez-nous	-
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
