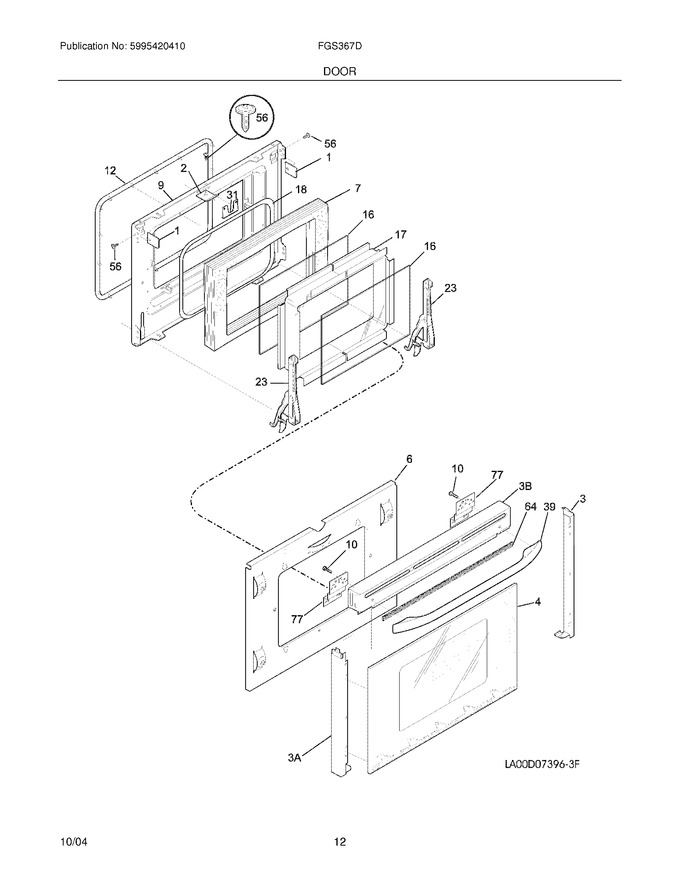

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318180310		Bracket,trim Mtg				$ 65.31
2	318180312		Bracket,upper Trim Mtg		Appelez-nous	-
3	318187814		Trim,door ,black ,rh Side		Appelez-nous	-
4	318187714		Panel,door Front Assy ,glass ,black ,with Lower Trim		Appelez-nous	-
6	318056815		Deflector,door		Appelez-nous	-
7	318133781		Insulation,oven Door		Appelez-nous	-
9	318157041		Liner,inner Door Assy		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
12	318053103		Gasket,oven Door Seal   (Replaces: 318253001)			Immediately	$ 150.03
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
23	318024700		Hinge,oven Door		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
39	318231200		Handle,black		Appelez-nous	-
56	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
64	5304417120		Tape,0.762 M ,neoprene		Appelez-nous	-
77	318043100		Bracket-trim, Handle, (2)				$ 52.87
3A	318187815		Trim,door ,black ,lh Side		Appelez-nous	-
3B	318176647		Trim,door ,black ,top		Appelez-nous	-
NI	316221002		Label,anti-tip		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
