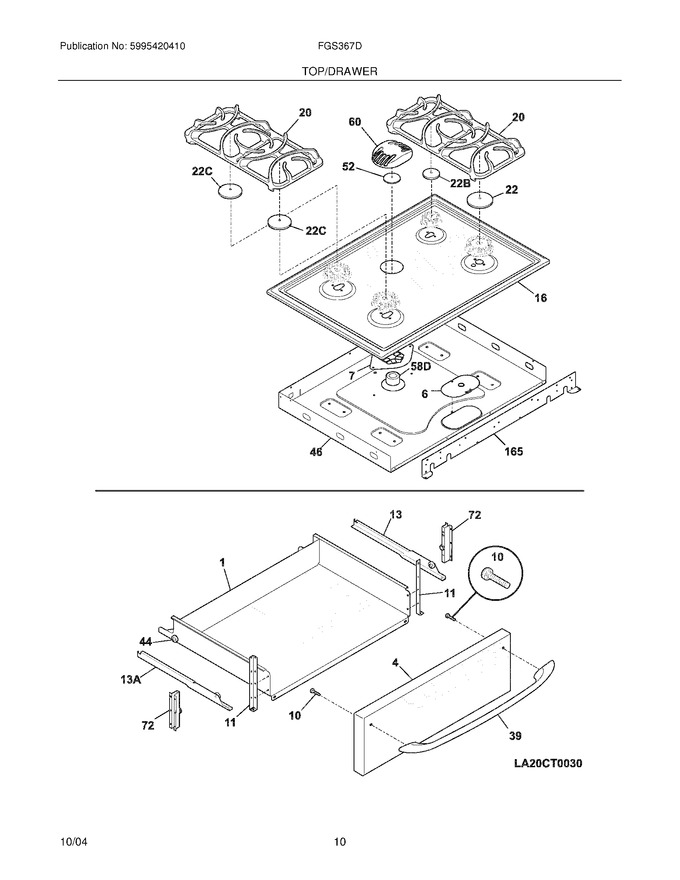

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318267500		Body,drawer		Appelez-nous	-
4	318134017		Panel,drawer ,black ,front		Appelez-nous	-
6	318229900		Cover,wiring		Appelez-nous	-
7	318268400		Bracket,insulation ,box		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
11	318263100		Bracket,drawer ,(2)		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318295402		Maintop,black		Appelez-nous	-
20	318231300		Grate,black ,(2)				$ 432.71
22	316242800		Cap,11k Burner ,black				$ 132.41
39	318231200		Handle,black		Appelez-nous	-
44	5304441057		Wheel,(2)		Appelez-nous	-
46	318225403		Box,burner		Appelez-nous	-
52	318269100		Cap,flue ,black ,inner		Appelez-nous	-
60	318269200		Cover,flue ,black ,outer		Appelez-nous	-
72	318281700		Support & Roller Assy.,(2)		Appelez-nous	-
165	318227501		Plate,mounting		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
22B	316206500		Cap,5k Burner ,black				$ 92.66
22C	316242900		Cap,9.5k Burner ,black				$ 51.61
58D	318268200		Insulation,oven Vent ,(3)		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	5304441056		Nut,keps ,1/4-20		Appelez-nous	-
NI	318266600		Gasket,flue		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303325173		Cap-plug		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
