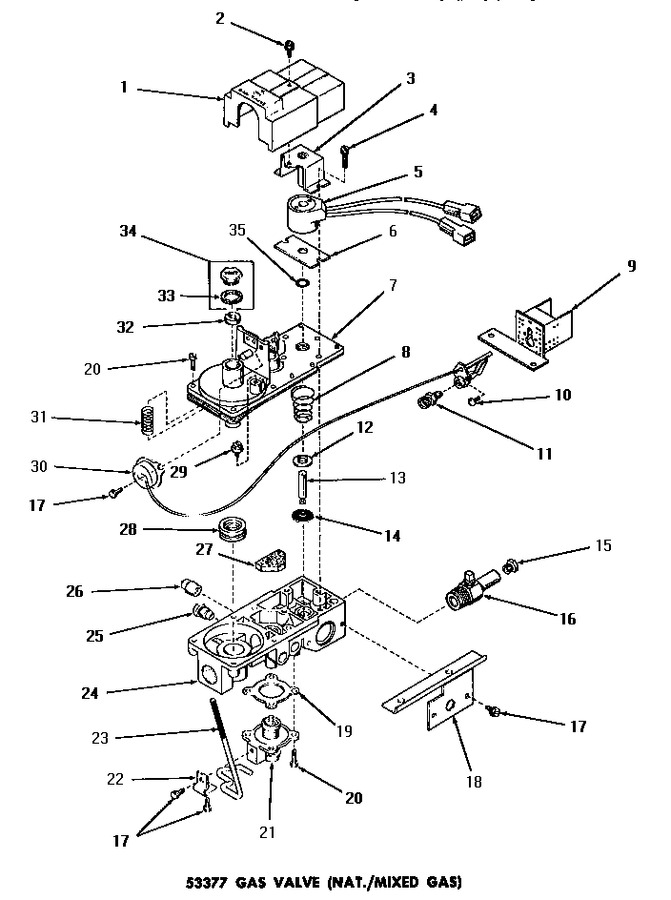

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53377S		Valve Housing		Appelez-nous	-
2	53379B		Hex Head Screw		Appelez-nous	-
3	53377B		Plunger Guide And Bracket		Appelez-nous	-
4	53379C		Hex Head Screw		Appelez-nous	-
5	53377A		Coil,burner		Appelez-nous	-
6	53377C		Plate		Appelez-nous	-
7	53377K		Valve Cover And Gasket		Appelez-nous	-
8	53377Y		Valve Spring		Appelez-nous	-
9	53377F		Pilot Shield		Appelez-nous	-
10	53379F		Round Head Screw		Appelez-nous	-
11	53387		Orifice,ng		Appelez-nous	-
12	53377L		Stiffener		Appelez-nous	-
13	53377M		Plunger Shaft		Appelez-nous	-
14	53377N		Plunger Seat		Appelez-nous	-
15	51209		Orifice,ng		Appelez-nous	-
16	53377W		Burner Orifice Adapter		Appelez-nous	-
17	53379D		Hex Head Screw		Appelez-nous	-
18	53377Q		Mounting Bracket		Appelez-nous	-
19	53377H		Gasket		Appelez-nous	-
20	53379E		Hex Head Screw		Appelez-nous	-
21	53377G		Reset Valve		Appelez-nous	-
22	53377U		Clamp		Appelez-nous	-
23	53377J		Reset Lever		Appelez-nous	-
24	53377P		Valve Body		Appelez-nous	-
25	53377V		Screw,compression		Appelez-nous	-
26	20247		Plug,pipe		Appelez-nous	-
27	53377T		Filter		Appelez-nous	-
28	52966R		Regulator Seat		Appelez-nous	-
29	53377Z		Hex Head Screw		Appelez-nous	-
30	53377E		Burner,pilot		Appelez-nous	-
31	53377X		Regulator Spring		Appelez-nous	-
32	52966M		Regualtor Screw		Appelez-nous	-
33	52966L		Gasket		Appelez-nous	-
34	53558		Screw,vent		Appelez-nous	-
35	53377D		O-ring		Appelez-nous	-
NI	53377		Valve,gas		Appelez-nous	-
