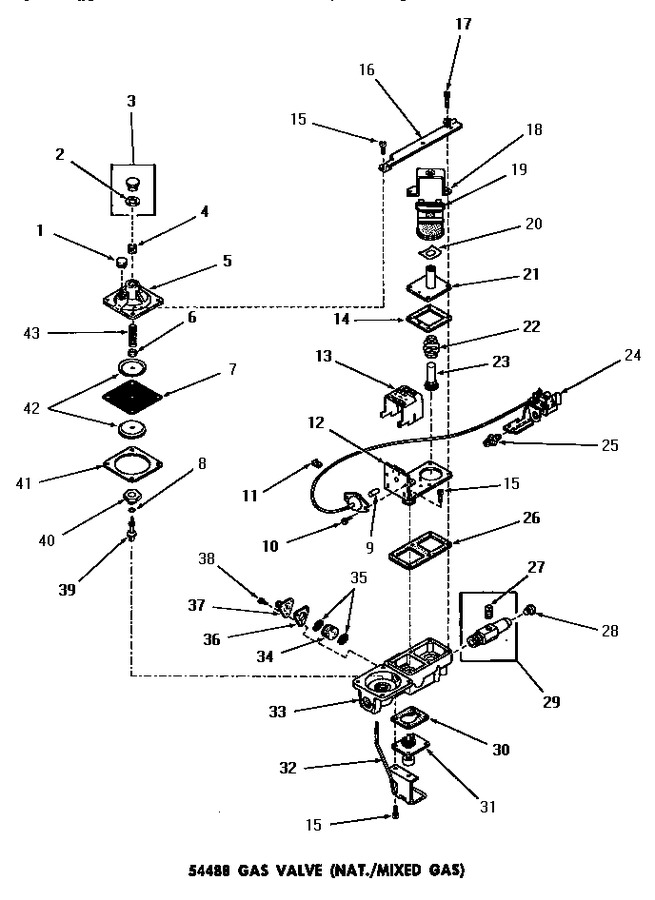

07 - 54488 Gas Valve (nat. / Mixed Gas)


08 - Cabinet Top


09 - Clothes Drum


10 - Control Panel, Control Hood & Controls


11 - Door Release


12 - Drum Light & Cover Plate


13 - Drum Light & Cover Plate


14 - Exhaust Fan


15 - Front Frame & Air Shroud


16 - Heater Box


17 - Loading Door


18 - Loading Door


19 - Motor, Idler & Belt


20 - Non-``m`` Model--standing Pilot Burner


21 - Panels


22 - Rear Frame & Frame Base


23 - Wire & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54477		Cap,vent		Appelez-nous	-
2	0054474		Use D7425607		Appelez-nous	-
3	Y0054476		Gasket, Dr Ref.		Appelez-nous	-
4	54486C		Regulator Screw		Appelez-nous	-
5	51402Q		Regulator Cover		Appelez-nous	-
6	51402V		Nut		Appelez-nous	-
7	51402X		Diaphragm		Appelez-nous	-
8	51402Y		Gasket		Appelez-nous	-
9	54486Z		Actuating Pin		Appelez-nous	-
10	54486K		Screw		Appelez-nous	-
11	54486N		Clamp		Appelez-nous	-
12	54486D		Pilot Valve Latch And Plate		Appelez-nous	-
13	54486G		Latch Cover		Appelez-nous	-
14	54486T		Gasket		Appelez-nous	-
15	54486J		Screw		Appelez-nous	-
16	54485		Mounting Bracket		Appelez-nous	-
17	54486L		Screw		Appelez-nous	-
18	54486F		Coil Hold-down Bracket		Appelez-nous	-
19	54486A		Coil,burner		Appelez-nous	-
20	51402G		Leaf Spring		Appelez-nous	-
21	54486U		Plunger Guide		Appelez-nous	-
22	51999E		Spring		Appelez-nous	-
23	54486M		Plunger		Appelez-nous	-
24	54484		Pilot Burner		Appelez-nous	-
25	54473		Orifice,pilot		Appelez-nous	-
26	54486R		Gasket		Appelez-nous	-
27	20247		Plug,pipe		Appelez-nous	-
28	51209		Orifice,ng		Appelez-nous	-
29	0054480		Net-pan,drain		Appelez-nous	-
30	54486S		Gasket		Appelez-nous	-
31	54486Q		Reset Valve		Appelez-nous	-
32	54486E		Reset Lever And Bracket		Appelez-nous	-
33	54486B		Valve Body		Appelez-nous	-
34	54486Y		Filter		Appelez-nous	-
35	54486X		Filter Screen		Appelez-nous	-
36	54486W		Gasket		Appelez-nous	-
37	54486P		Outlet		Appelez-nous	-
38	54486H		Screw		Appelez-nous	-
39	51402AB		Regulator Pin		Appelez-nous	-
40	51402AA		Regulator Pin Seat		Appelez-nous	-
41	51402Z		Gasket		Appelez-nous	-
42	51402W		Diaphragm Plate		Appelez-nous	-
43	51402U		Regulator Spring		Appelez-nous	-
NI	54488		Gas Valve		Appelez-nous	-
