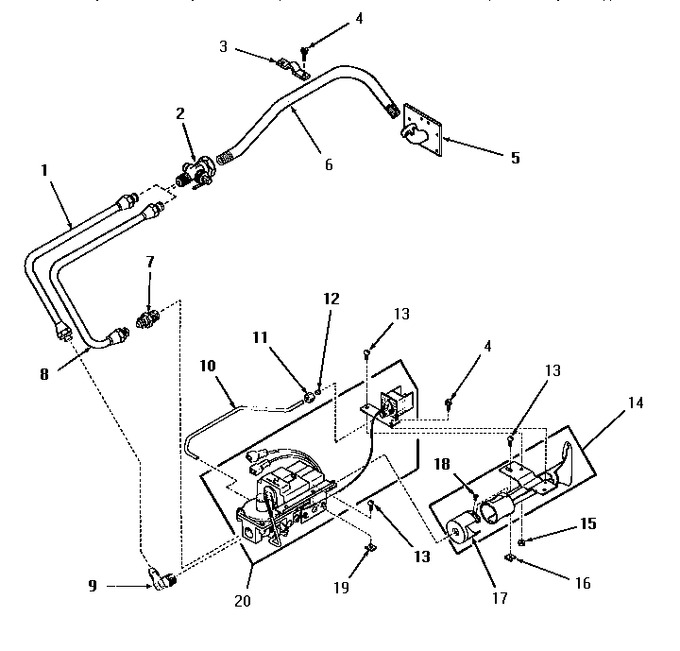

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53381		Inlet Gas Tube		Appelez-nous	-
2	Y51058		Valve		Appelez-nous	-
3	51828		Gas Pipe Clamp		Appelez-nous	-
4	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
5	51842		Pipe Support		Appelez-nous	-
6	51775		Inlet Gas Pipe		Appelez-nous	-
7	54408		Connector,male		Appelez-nous	-
8	54407		Assy,inlet Gas Tube		Appelez-nous	-
9	Y51266		Male Elbow		Appelez-nous	-
10	53382		Tube,pilot Xreplace		Appelez-nous	-
11	52861		Nut,compression		Appelez-nous	-
12	52860		Sleeve,compression		Appelez-nous	-
13	20267		Screw,10-24 X 3/8 Round		Appelez-nous	-
14	53011		Tube,burner		Appelez-nous	-
15	03673		Nut		Appelez-nous	-
16	20249		Nut,speed 10-24		Appelez-nous	-
17	53007		Shutter,air		Appelez-nous	-
18	53006		Round Head Screw		Appelez-nous	-
19	21747		Nut,speed		Appelez-nous	-
20	53377		Valve,gas		Appelez-nous	-
NI	51209		Orifice,ng		Appelez-nous	-
NI	214P3		Kit,conversion		Appelez-nous	-
NI	53392		Valve Converted Sticker		Appelez-nous	-
NI	53389		Orifice,lp		Appelez-nous	-
NI	51211		Orifice,lp No.55 Drill		Appelez-nous	-
NI	53556		Sticker,conversion		Appelez-nous	-
NI	52894		Sticker		Appelez-nous	-
NI	53390		Plug,block-open		Appelez-nous	-
NI	52893		Sticker		Appelez-nous	-
NI	213P3		Kit,conversion		Appelez-nous	-
NI	53408		Label,change-over		Appelez-nous	-
NI	53558		Screw,vent		Appelez-nous	-
NI	53557		Sticker		Appelez-nous	-
NI	53387		Orifice,ng		Appelez-nous	-
