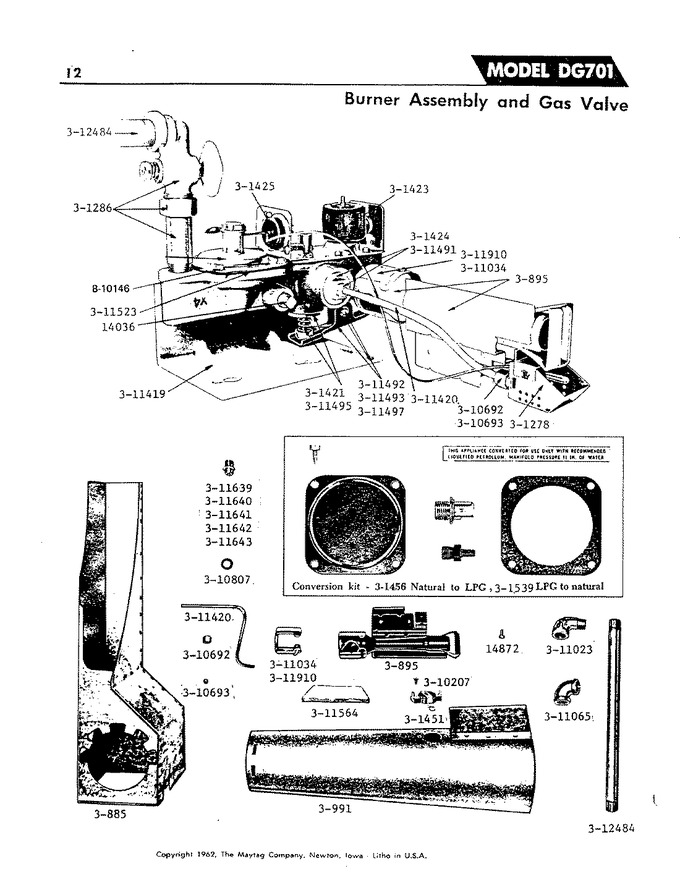

01 - Burner Assembly & Gas Valve
02 - Cabinet Removed
03 - Control Panel
04 - Exhaust & Blower Assembly
05 - Front View
06 - Wiring & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300368 | Shut-off Valve W/male Outlet | 00 |
|
- | ||||
| 2 | 300885 | Mixer Chamber | 00 |
|
- | ||||
| 3 | W11169039 | Burner Complete (Replaces: 300895) | 00 |
|
Immediately | $ 182.83 | |||
| 4 | 300991 | Combustion Cone | 00 |
|
- | ||||
| 5 | 301221 | Stationary Shroud | 00 |
|
- | ||||
| 6 | 301278 | Pilot Shield | 00 |
|
- | ||||
| 7 | 301285 | Gas Valve - Natural | 00 |
|
- | ||||
| 8 | 301286 | Pilot Valve | 00 |
|
- | ||||
| 9 | 301404 | Gas Valve - Lp | 00 |
|
- | ||||
| 10 | W11169039 | Manuel Reset Button Assembly (Replaces: 301421) | 00 |
|
Immediately | $ 182.83 | |||
| 11 | 301422 | Plunger | 00 |
|
- | ||||
| 12 | 301423 | Solenoid Nla In Process 051591 | 00 |
|
- | ||||
| 13 | 301424 | Filter | 00 |
|
- | ||||
| 14 | 301425 | Pilot With Pressure Switch | 00 |
|
- | ||||
| 15 | Y301451 | High Limit Thermostat | 00 |
|
- | ||||
| 16 | 301539 | Conversion Kit-lpg To Nat. | 00 |
|
- | ||||
| 17 | 301456 | Conversion Kit-nat. To Lpg | 00 |
|
- | ||||
| 18 | 310207 | Screw, No.6 X 1/4 Inch | 00 |
|
- | ||||
| 19 | Y310632 | Screw | 00 |
|
- | ||||
| 20 | 310692 | Compression Nut | 00 |
|
- | ||||
| 21 | Y310693 | Compression Sleeve | 00 |
|
- | ||||
| 22 | 310807 | Orifice Gasket | 00 |
|
- | ||||
| 23 | 310862 | Spring | 00 |
|
- | ||||
| 24 | 311023 | Street Elbow, 3/8 Inch | 00 |
|
- | ||||
| 25 | 311034 | Air Shutter For Burner | 00 |
|
- | ||||
| 26 | 311038 | Insulation | 00 |
|
- | ||||
| 27 | 311065 | 90 Degree Elbow, 3/8 Inch | 00 |
|
- | ||||
| 28 | 311147 | Exhaust Deflector | 00 |
|
- | ||||
| 29 | 311162 | Label-natural | 00 |
|
- | ||||
| 30 | 311163 | Conversion Sticker | 00 |
|
- | ||||
| 31 | 311165 | Conversion Sticker (mixed) | 00 |
|
- | ||||
| 32 | 311166 | Conversion Sticker (mfg) | 00 |
|
- | ||||
| 33 | WPW10017410 | Label-lpg (Replaces: 311167) | 00 |
|
Immediately | $ 19.05 | |||
| 34 | Y311418 | Pilot Orifice | 00 |
|
- | ||||
| 35 | 311419 | Control Bracket | 00 |
|
- | ||||
| 36 | 311420 | Pilot Tube | 00 |
|
- | ||||
| 37 | WP489483 | Screw, No.10-32 X 1/2 Inch (Replaces: Y311423) | 00 |
|
$ 9.78 | ||||
| 38 | Y311480 | Pilot Orifice (lp) | 00 |
|
- | ||||
| 39 | 311481 | Pilot Orifice-mfg. | 00 |
|
- | ||||
| 40 | Y311482 | Pilot Orifice-lpg | 00 |
|
- | ||||
| 41 | 311491 | Gasket For Filter | 00 |
|
- | ||||
| 42 | 311492 | Lever For Manuel Reset | 00 |
|
- | ||||
| 43 | 311493 | Hinge Pin For Manuel Reset Lvr | 00 |
|
- | ||||
| 44 | 311495 | Gasket | 00 |
|
- | ||||
| 45 | 311496 | Tension Washer/manuel Reset Lv | 00 |
|
- | ||||
| 46 | 311497 | Clip Ring/manuel Reset Lever | 00 |
|
- | ||||
| 47 | Y311498 | Compression Nut | 00 |
|
- | ||||
| 48 | 311522 | Screw, No.6-32 X 1/2 Inch | 00 |
|
- | ||||
| 49 | 311523 | Gasket For Regulator | 00 |
|
- | ||||
| 50 | 810146 | Screw | 00 |
|
- | ||||
| 51 | 311564 | Insulation For Cone | 00 |
|
- | ||||
| 52 | IGN2 | Screw, Pilot Shield (Replaces: 311618) | 00 |
|
$ 43.78 | ||||
| 53 | Y311639 | Orifice For Main Burner | 00 |
|
- | ||||
| 54 | 311640 | Orifice For Main Burner | 00 |
|
- | ||||
| 55 | 311641 | Orifice For Main Burner | 00 |
|
- | ||||
| 56 | 311642 | Orifice, Main Burner (mfg) | 00 |
|
- | ||||
| 57 | 311643 | Orifice For Main Burner | 00 |
|
- | ||||
| 58 | 311910 | Air Shutter | 00 |
|
- | ||||
| 59 | Y312484 | Pipe, 17-3/8 Inch | 00 |
|
- | ||||
| 60 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 61 | Y014036 | Pipe Plug (1/8``) | 00 |
|
- | ||||
| 62 | Y014872 | Screw, No.10 X 3/8 | 00 |
|
- |
