View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Burner Assembly & Gas Valve
02 - Cabinet Removed
03 - Control Panel
04 - Exhaust & Blower Assembly

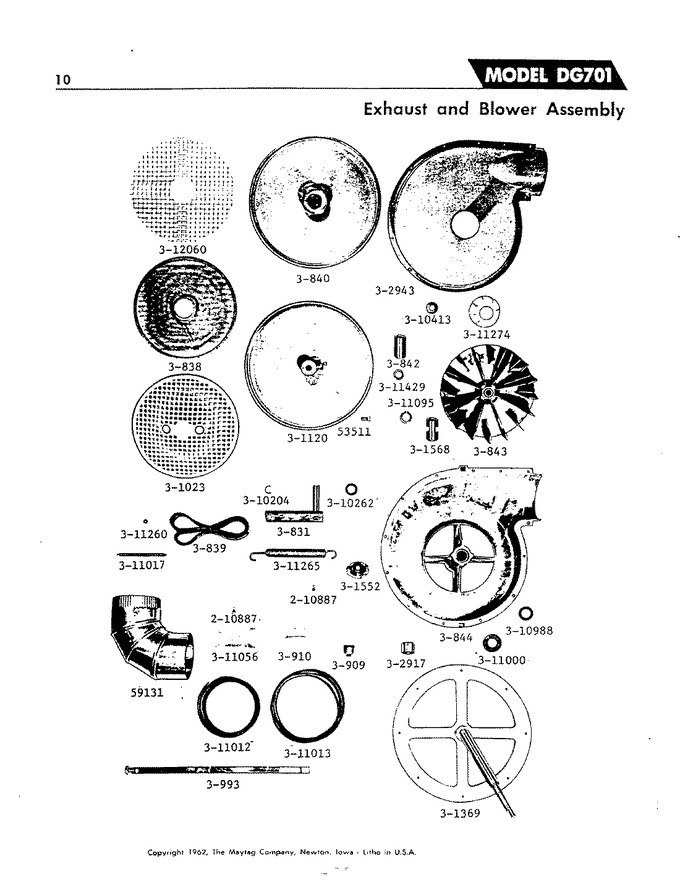

05 - Front View
06 - Wiring & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300831 | Shaft And Slide | 00 |
|
- | ||||
| 2 | 300833 | Support For Exhaust Fan | 00 |
|
- | ||||
| 3 | 300838 | Lint Screen | 00 |
|
$ 32.17 | ||||
| 4 | 300839 | Seal | 00 |
|
- | ||||
| 5 | 300840 | Reduction Pulley | 00 |
|
- | ||||
| 6 | 300842 | Bearing | 00 |
|
- | ||||
| 7 | 300843 | Impeller | 00 |
|
- | ||||
| 8 | Y300844 | Exhaust Housing | 00 |
|
- | ||||
| 9 | W10311986 | Clamp (Replaces: 300993) | 00 |
|
Immediately | $ 169.33 | |||
| 10 | 301023 | Lint Screen Retainer | 00 |
|
$ 31.44 | ||||
| 11 | Y301120 | Drum Pulley | 00 |
|
- | ||||
| 12 | 301162 | Sprinkler | 00 |
|
- | ||||
| 13 | 301369 | Shaft With Spider | 00 |
|
- | ||||
| 14 | 301552 | Regulating Thermostat | 00 |
|
- | ||||
| 15 | 301568 | Bearing F/bakelite Impeller Na | 00 |
|
- | ||||
| 16 | 302917 | Bearing Kit - Drum | 00 |
|
- | ||||
| 17 | 302943 | Cover With Lint Seal-blower | 00 |
|
- | ||||
| 18 | 310204 | Snap Ring | 00 |
|
- | ||||
| 19 | 310262 | Washer | 00 |
|
- | ||||
| 20 | WP312535 | Washer (Replaces: 310413) | 00 |
|
Immediately | $ 10.25 | |||
| 21 | 310578 | Washer | 00 |
|
- | ||||
| 22 | 310988 | O Ring Seal | 00 |
|
- | ||||
| 23 | 311000 | Washer | 00 |
|
- | ||||
| 24 | Y311012 | Drive Belt | 00 |
|
$ 32.09 | ||||
| 25 | Y311013 | Motor Belt | 00 |
|
$ 28.00 | ||||
| 26 | Y311017 | Retainer Spring | 00 |
|
- | ||||
| 27 | 311048 | Washer, Aluminum | 00 |
|
- | ||||
| 28 | 311056 | Lamp Support | 00 |
|
- | ||||
| 29 | 311095 | Retaining Ring | 00 |
|
- | ||||
| 30 | 311260 | Nylon Washer | 00 |
|
- | ||||
| 31 | 311265 | Spring | 00 |
|
- | ||||
| 32 | 311274 | Cap For Impeller | 00 |
|
- | ||||
| 33 | 311276 | Air Filter | 00 |
|
- | ||||
| 34 | 311277 | Filter Spring | 00 |
|
- | ||||
| 35 | Y311429 | Nylon Spacer Collar | 00 |
|
- | ||||
| 36 | Y312060 | Shield For Spider | 00 |
|
- | ||||
| 37 | WP12990527 | Screw, Hex Hd No.6 X 3/8 Inch (Replaces: 210887) | 00 |
|
Immediately | $ 7.15 | |||
| 38 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 39 | 015628 | Bolt, 5/16 X 3/4 Hex | 00 |
|
- | ||||
| 40 | 051394 | Bolt, 5/16 X 2-1/8 | 00 |
|
- | ||||
| 41 | 052792 | Screw, 1 1/4-20 X 5/16 | 00 |
|
- | ||||
| 42 | Y053511 | Set Screw | 00 |
|
- | ||||
| 53 | Y055977 | Turbine Oil, 4 Oz. | 00 |
|
- | ||||
| 54 | Y059131 | Elbow, Venting (4``) | 00 |
|
- |
