01 - Burner Assembly & Gas Valve

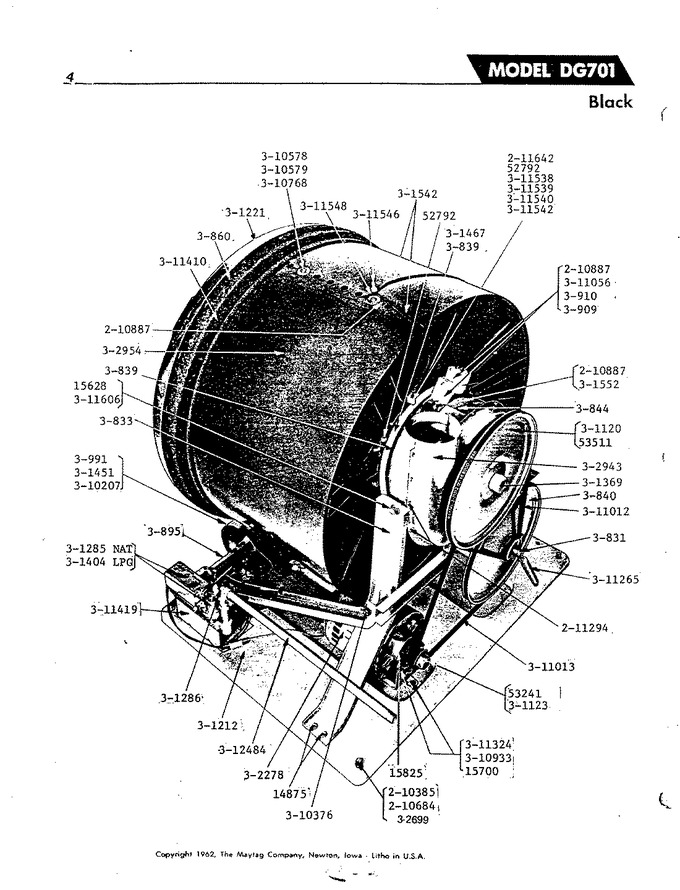

02 - Cabinet Removed
03 - Control Panel
04 - Exhaust & Blower Assembly
05 - Front View
06 - Wiring & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 300552 | Lamp Socket |
|
- | |||||
| 2 | 300831 | Shaft And Slide |
|
- | |||||
| 3 | 300833 | Support For Exhaust Fan |
|
- | |||||
| 4 | 300838 | Lint Screen |
|
$ 32.17 | |||||
| 5 | 300839 | Seal |
|
- | |||||
| 6 | 300840 | Reduction Pulley |
|
- | |||||
| 7 | 300842 | Bearing |
|
- | |||||
| 8 | 300843 | Impeller |
|
- | |||||
| 9 | Y300844 | Exhaust Housing |
|
- | |||||
| 10 | 300860 | Seal, Drum Cover |
|
- | |||||
| 11 | 300885 | Mixer Chamber |
|
- | |||||
| 12 | W11169039 | Burner Complete (Replaces: 300895) |
|
Immediately | $ 182.83 | ||||
| 13 | 40A15 | Appliance Bulb - 40 Watt (Replaces: 300909) |
|
Immediately | $ 1.98 | ||||
| 14 | 300910 | Receptacle |
|
- | |||||
| 15 | 300966 | No.4 Wire With Terminal |
|
- | |||||
| 16 | 300991 | Combustion Cone |
|
- | |||||
| 17 | W10311986 | Clamp (Replaces: 300993) |
|
Immediately | $ 169.33 | ||||
| 18 | Y301120 | Drum Pulley |
|
- | |||||
| 19 | 301123 | Motor Pulley |
|
$ 1.02 | |||||
| 20 | 301212 | Base Frame |
|
- | |||||
| 21 | 301221 | Stationary Shroud |
|
- | |||||
| 22 | 301278 | Pilot Shield |
|
- | |||||
| 23 | 301285 | Gas Valve - Natural |
|
- | |||||
| 24 | 301286 | Pilot Valve |
|
- | |||||
| 25 | 301369 | Shaft With Spider |
|
- | |||||
| 26 | 301404 | Gas Valve - Lp |
|
- | |||||
| 27 | 301424 | Filter |
|
- | |||||
| 28 | 301425 | Pilot With Pressure Switch |
|
- | |||||
| 29 | Y301451 | High Limit Thermostat |
|
- | |||||
| 30 | 301462 | Timer |
|
- | |||||
| 31 | 301464 | Baffle For Drum |
|
- | |||||
| 32 | 301467 | Slip Ring |
|
- | |||||
| 33 | 301486 | Wire Harness-door Switch |
|
- | |||||
| 34 | 301487 | Circuit Board Harness |
|
- | |||||
| 35 | 301539 | Conversion Kit-lpg To Nat. |
|
- | |||||
| 36 | 301542 | Wire Harness For Drum |
|
- | |||||
| 37 | 301552 | Regulating Thermostat |
|
- | |||||
| 38 | 301554 | Major Wire Harness |
|
- | |||||
| 39 | 301568 | Bearing F/bakelite Impeller Na |
|
- | |||||
| 40 | Y302278 | Motor |
|
- | |||||
| 41 | 302521 | Power Cord |
|
- | |||||
| 42 | 301456 | Conversion Kit-nat. To Lpg |
|
- | |||||
| 43 | 302917 | Bearing Kit - Drum |
|
- | |||||
| 44 | 302943 | Cover With Lint Seal-blower |
|
- | |||||
| 45 | 302954 | Drum W/felt - Porcelain |
|
- | |||||
| 46 | 310204 | Snap Ring |
|
- | |||||
| 47 | 310207 | Screw, No.6 X 1/4 Inch |
|
- | |||||
| 48 | 310262 | Washer |
|
- | |||||
| 49 | Y310376 | Clip, Wire Harness |
|
- | |||||
| 50 | 310578 | Washer |
|
- | |||||
| 51 | 310579 | Screw, No.10-24 X 11/16 Inch |
|
- | |||||
| 52 | 310768 | Washer |
|
- | |||||
| 53 | 310933 | Fastener |
|
- | |||||
| 54 | 22003428 | Leg, Adjustable (w/nut) (Replaces: Y302699) |
|
Immediately | $ 14.41 | ||||
| 55 | Y311012 | Drive Belt |
|
$ 32.09 | |||||
| 56 | Y311013 | Motor Belt |
|
$ 28.00 | |||||
| 57 | Y311017 | Retainer Spring |
|
- | |||||
| 58 | 311034 | Air Shutter For Burner |
|
- | |||||
| 59 | 311038 | Insulation |
|
- | |||||
| 60 | 311048 | Washer, Aluminum |
|
- | |||||
| 61 | 311056 | Lamp Support |
|
- | |||||
| 62 | 311095 | Retaining Ring |
|
- | |||||
| 63 | 311104 | Harness Clip |
|
- | |||||
| 64 | 311155 | Ground Wire |
|
$ 8.77 | |||||
| 65 | 311260 | Nylon Washer |
|
- | |||||
| 66 | 311265 | Spring |
|
- | |||||
| 67 | 311274 | Cap For Impeller |
|
- | |||||
| 68 | 311324 | Motor Base |
|
- | |||||
| 69 | 311410 | Band |
|
- | |||||
| 70 | 311412 | Screw |
|
- | |||||
| 71 | 311419 | Control Bracket |
|
- | |||||
| 72 | 311420 | Pilot Tube |
|
- | |||||
| 73 | 311492 | Lever For Manuel Reset |
|
- | |||||
| 74 | 311493 | Hinge Pin For Manuel Reset Lvr |
|
- | |||||
| 75 | 311534 | Felt Seal |
|
- | |||||
| 76 | Y311538 | Carbon Brush Holder |
|
- | |||||
| 77 | Y311539 | Spring For Carbon Brush |
|
- | |||||
| 78 | 311540 | Cover For Carbon Brush |
|
- | |||||
| 79 | Y311542 | Carbon Brush |
|
- | |||||
| 80 | 311546 | Closed Connector |
|
- | |||||
| 81 | 311548 | Insulation Sleeve,1-1/4 Inc |
|
- | |||||
| 82 | 311564 | Insulation For Cone |
|
- | |||||
| 83 | 311606 | Lock Washer |
|
- | |||||
| 84 | W10850756 | Ground Lug (Replaces: Y311916) |
|
$ 6.98 | |||||
| 85 | Y312060 | Shield For Spider |
|
- | |||||
| 86 | Y312484 | Pipe, 17-3/8 Inch |
|
- | |||||
| 87 | WP75614 | Wire Connector (Replaces: 201110) |
|
$ 44.41 | |||||
| 88 | 210310 | Pilot Lamp |
|
- | |||||
| 89 | WP210385 | Nut, Lock (Replaces: 210385) |
|
$ 6.26 | |||||
| 90 | WP210684 | Foot, Rubber (Replaces: 210684) |
|
Immediately | $ 14.09 | ||||
| 91 | WP12990527 | Screw, Hex Hd No.6 X 3/8 Inch (Replaces: 210887) |
|
Immediately | $ 7.15 | ||||
| 92 | WP90767 | Screw (Replaces: 211294) |
|
Immediately | $ 7.04 | ||||
| 93 | 211642 | Screw, No.6-20 X 3/8 Inch |
|
- | |||||
| 94 | 211881 | Grommet, Cord |
|
- | |||||
| 95 | 410351 | Harness Retainer |
|
- | |||||
| 96 | Y014872 | Screw, No.10 X 3/8 |
|
- | |||||
| 97 | 014875 | Cap Screw, No.14 X 1/2 |
|
- | |||||
| 98 | 015628 | Bolt, 5/16 X 3/4 Hex |
|
- | |||||
| 99 | 015700 | Cap Screw, 1/4-20 X 1/2 |
|
- | |||||
| 100 | WPY015825 | Clip, Motor (Replaces: Y015825) |
|
$ 21.03 | |||||
| 101 | 051394 | Bolt, 5/16 X 2-1/8 |
|
- | |||||
| 102 | 052792 | Screw, 1 1/4-20 X 5/16 |
|
- | |||||
| 103 | Y053241 | Set Screw, Pulley |
|
- | |||||
| 104 | Y053511 | Set Screw |
|
- |
