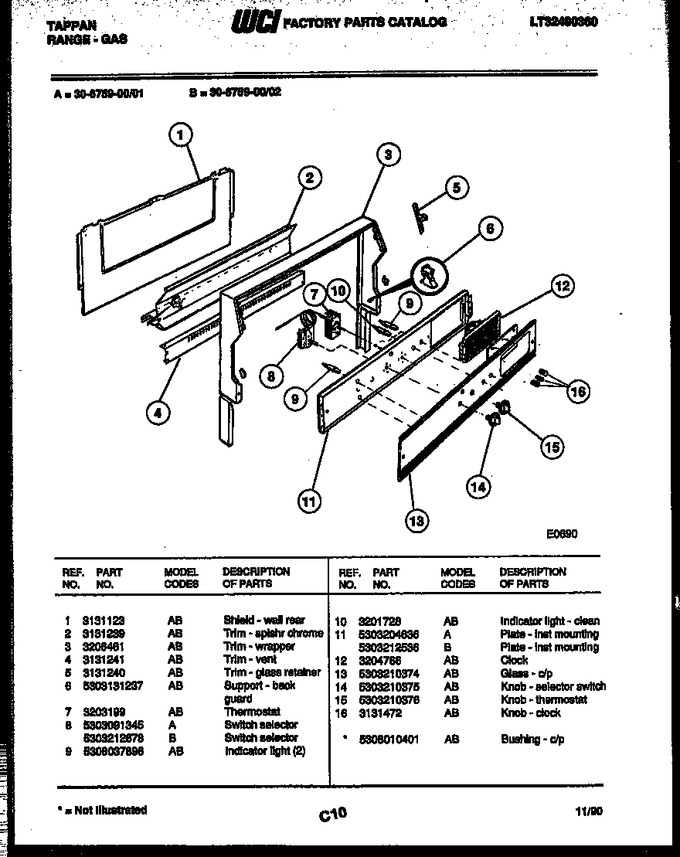

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131123 | Shield - Wall Rear |
|
- | |||||
| 2 | 3131239 | Trim - Splshr Chrome |
|
- | |||||
| 3 | 3206461 | Trim-wrapper |
|
- | |||||
| 4 | 3131241 | Trim-vent |
|
- | |||||
| 5 | 3131240 | Trim-glass Retainer |
|
- | |||||
| 6 | 5303131237 | Support, Backguard |
|
- | |||||
| 7 | 3203199 | Thermostat |
|
- | |||||
| 8 | 5303212678 | Switch Selector |
|
- | |||||
| 9 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 10 | 3201728 | Indicator Light-clean |
|
- | |||||
| 11 | 5303212536 | Plate - Inst Mounting |
|
- | |||||
| 12 | 3204766 | Clock |
|
- | |||||
| 13 | 5303210374 | Glass - C/p |
|
- | |||||
| 14 | 5303210375 | Knob - Selector Switch |
|
- | |||||
| 15 | 5303210376 | Knob - Thermostat |
|
- | |||||
| 16 | 3131472 | Knob-clock |
|
- | |||||
| *37718 | 5308010401 | Bushing C/p |
|
- |
