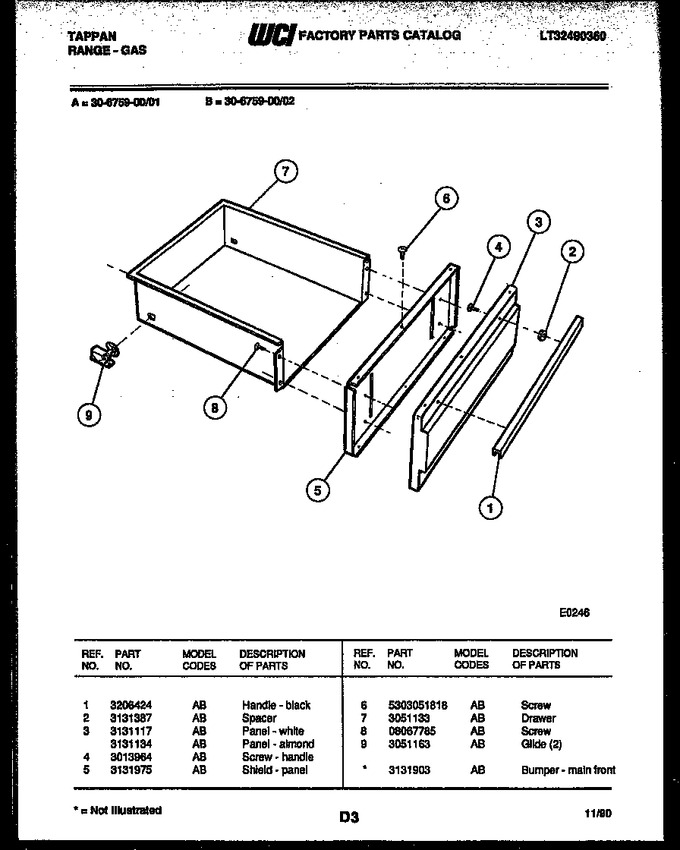

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206424 | Handle - Black |
|
- | |||||
| 2 | 3131387 | Spacer |
|
- | |||||
| 3 | 3131134 | Panel-almond |
|
- | |||||
| 4 | 3013964 | Screw - Handle |
|
- | |||||
| 5 | 3131975 | Shield-panel |
|
- | |||||
| 6 | 5303051818 | Screw |
|
- | |||||
| 7 | 3051133 | Drawer |
|
- | |||||
| 8 | 08067785 | Screw |
|
- | |||||
| 9 | 3051163 | Glide (2) |
|
Immediately | $ 19.41 | ||||
| *37739 | 3131903 | Bumper |
|
$ 55.36 |
