SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Door Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

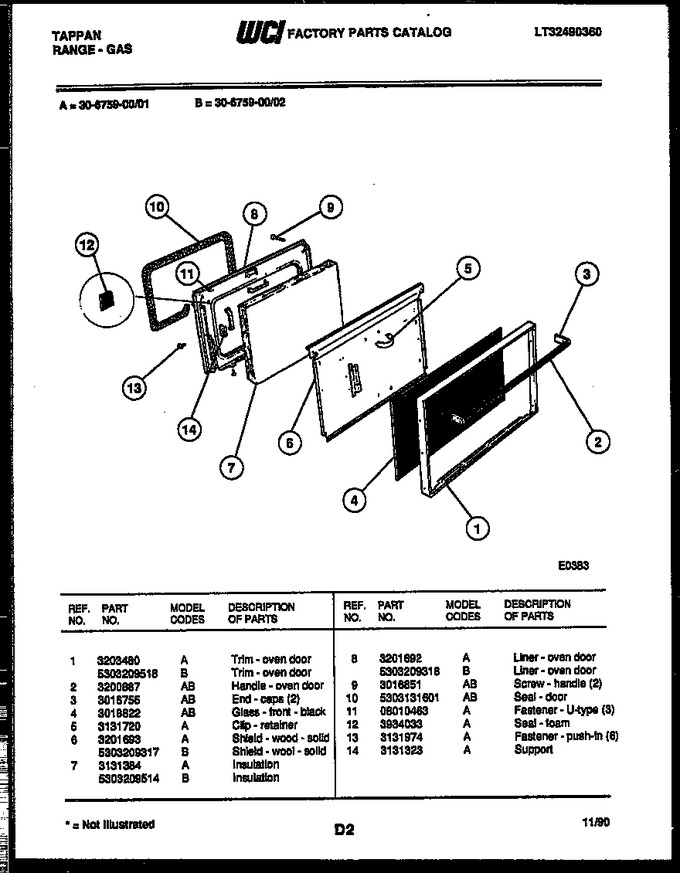

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209518 | Trim-oven Door |
|
- | |||||
| 2 | 3200887 | Handle-oven Door |
|
- | |||||
| 3 | 3016755 | End Caps (2) |
|
- | |||||
| 4 | 3018822 | Glass Front - Black |
|
- | |||||
| 7 | 5303209514 | Insulation |
|
- | |||||
| 8 | 5303209318 | Liner-oven Door |
|
- | |||||
| 9 | 3016851 | Screw, Handle (2) |
|
- | |||||
| 10 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 6A | 5303209317 | Shield-wool Solid |
|
- |
