SELECT A DIAGRAM

01 - Blower Assembly

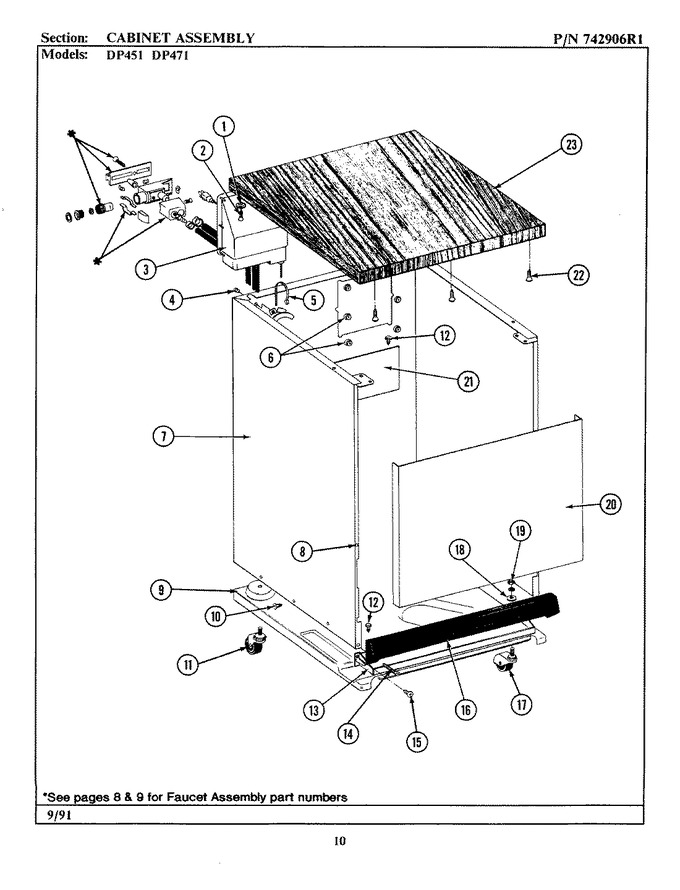

02 - Cabinet Assembly (dp451)


03 - Control Panel


04 - Door


05 - Door Front & Access Panel


06 - Faucet Assembly (dp451)


07 - Pump Assembly


08 - Racks


09 - Tub


10 - Tub Assembly


11 - Tub Support


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	911017		Spacer Washer	-	Appelez-nous	-
2	910993		Screw	-	Appelez-nous	-
3	900632		Retainer For Faucet Coupler	-	Appelez-nous	-
4	WP210720		Rivet   (Replaces: 210720)	-			$ 12.14
5	911020		Cable Strap	-	Appelez-nous	-
6	910854		Palnut For Coupler Retainer	-	Appelez-nous	-
7	901121L		Cabinet-almond	-	Appelez-nous	-
7	901121M		Cabinet-harvest Wheat	-	Appelez-nous	-
7	901121		Cabinet-white	-	Appelez-nous	-
8	910309		Washer	-	Appelez-nous	-
8	911858		Screw	-	Appelez-nous	-
9	Y911219		Frame, Base	-	Appelez-nous	-
9	910814		Strain Relief	-	Appelez-nous	-
10	213007		Screw, Cabinet	-			$ 10.99
11	900043		Caster, 2 Inch	-	Appelez-nous	-
12	WP4312464		Screw   (Replaces: 912197)	-			$ 6.26
13	911409		Front Caster Support	-	Appelez-nous	-
14	WP3-24004-109		Screw For Toe Board   (Replaces: 910955)	-			$ 7.25
15	W11233072		Screw   (Replaces: 910647)	-		Immediately	$ 12.62
16	911897		Panel, Toe	-	Appelez-nous	-
17	901979		Pair Of 9-475 Casters	-	Appelez-nous	-
18	WP348197		Washer   (Replaces: 911119)	-			$ 6.47
19	Y052734		Nut	-	Appelez-nous	-
20	912455		Insulation, Door	-	Appelez-nous	-
20	901827		Panel, Front (wht)	-	Appelez-nous	-
20	757056		Door Panel (harvest Wheat)	-	Appelez-nous	-
20	901827L		Panel, Front (alm)	-	Appelez-nous	-
21	911630		Cord Barrier-wc Models	-	Appelez-nous	-
22	911858		Screw	-	Appelez-nous	-
23	900709		Wood Top	-	Appelez-nous	-
