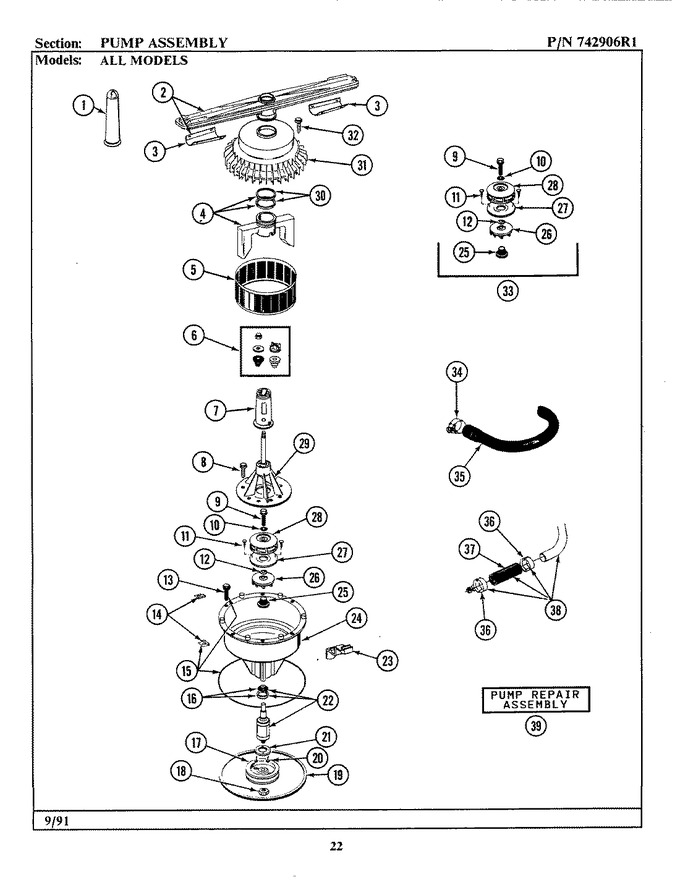

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 900796 | Nozzle | - |
|
- | ||||
| 2 | 901697 | Spray Arm W/radiant Shields | - |
|
- | ||||
| 3 | 911919 | Radiant Shield | - |
|
- | ||||
| 4 | 901278 | Rinse Arm With Seal Rings | - |
|
- | ||||
| 5 | 911451 | Filter | - |
|
- | ||||
| 6 | 901932 | Bearing Kit F/lower Wash Ar | - |
|
- | ||||
| 7 | 911191 | Support For Wash Arm | - |
|
- | ||||
| 8 | 911267 | Screw, Pump Cover | - |
|
- | ||||
| 9 | 910654 | Screw, Impeller | - |
|
$ 6.05 | ||||
| 10 | 910934 | Seal, O-ring | - |
|
$ 5.83 | ||||
| 11 | 911153 | Screw | - |
|
- | ||||
| 12 | 910375 | Seal | - |
|
- | ||||
| 13 | 911857 | Screw | - |
|
- | ||||
| 13 | 910934 | Seal, O-ring | - |
|
$ 5.83 | ||||
| 14 | 911268 | Fastener | - |
|
- | ||||
| 15 | 901674 | Gasket With Fasteners | - |
|
$ 31.06 | ||||
| 16 | 901217 | Slinger And Deflector Kit | - |
|
$ 60.70 | ||||
| 17 | 911918 | Pulley On Pump Assembly | - |
|
- | ||||
| 18 | Y911264 | Hex Nut, Pulley To Shaft | - |
|
- | ||||
| 19 | 6-9021150 | Belt With Lubricant (Replaces: 902115) | - |
|
Immediately | $ 62.87 | |||
| 20 | Y911263 | Screw | - |
|
- | ||||
| 21 | Y911196 | Retainer For Bearing | - |
|
- | ||||
| 22 | 900896 | Pump Shaft & Bearing Assm. | - |
|
- | ||||
| 23 | 911190 | Insert For Pump Housing | - |
|
- | ||||
| 24 | 901110 | Pump Housing Assembly | - |
|
- | ||||
| 25 | 900202 | Seal Assembly | - |
|
- | ||||
| 26 | 900894 | Drain Impeller | - |
|
- | ||||
| 27 | Y911202 | Baffle For Pump | - |
|
- | ||||
| 28 | 900979 | Circulating Impeller | - |
|
- | ||||
| 29 | 900868 | Pump Cover | - |
|
- | ||||
| 30 | 911220 | Seal Ring For Strainer | - |
|
- | ||||
| 31 | 911193 | Strainer | - |
|
- | ||||
| 32 | 911536 | Screw | - |
|
- | ||||
| 33 | 901109 | Pump Repair Kit | - |
|
- | ||||
| 34 | WP285655 | Clamp,hose (tub Outlet) (Replaces: 201011) | - |
|
Immediately | $ 7.55 | |||
| 35 | Y911215 | Hose, Drain | - |
|
- | ||||
| 36 | WP616099 | Clamp, Spray Arm Hose (Replaces: 200900) | - |
|
Immediately | $ 7.03 | |||
| 37 | 911593 | Rubber Coupling | - |
|
- | ||||
| 38 | 901586 | Top Spray Hose W/coupling | - |
|
- | ||||
| 39 | 901459 | Pump Repair Assembly | - |
|
- |
