Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 901829 Timer Motor - Appelez-nous -
4 912002 Barrier For Timer - Appelez-nous -
7 901434 Screw And Washer Assembly - Appelez-nous -
8 912006 Washer - Appelez-nous -
9 901900 Timer Knob With Insert - Appelez-nous -
10 911602 Timer Indicator Dial-chrome - Appelez-nous -
11 W11684507 Screw   (Replaces: 212707) - Special Order $ 12.23

12 911702 Ground Receptacle - Appelez-nous -
13 WP489128 Screw, Ground Wire To Base--na   (Replaces: 210186) - Special Order $ 9.79

14 902192 Harness - Appelez-nous -
15 901649CP Timer   (Replaces: 901649) - Appelez-nous -
16 WP8281227 Screw,hex Head (brake Drum)   (Replaces: 211000) - Special Order $ 9.40

17 901904 Control Switch - Appelez-nous -
18 912064 Button For Jenn-air Switches - Appelez-nous -
19 902185 Control Panel With Insert - Appelez-nous -

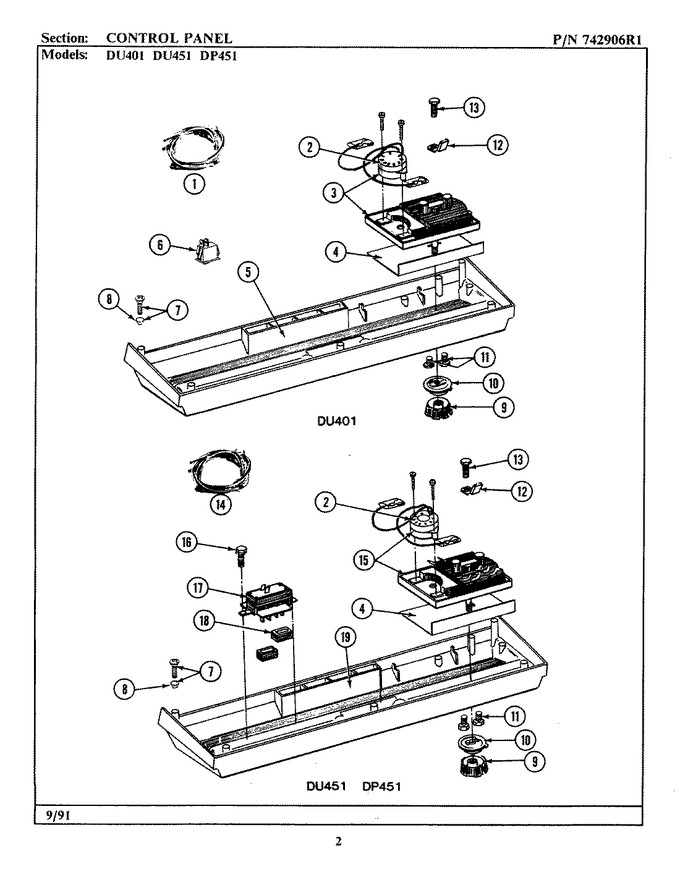

    View Diagram in Separate Window     Print Icon   Print Part List
